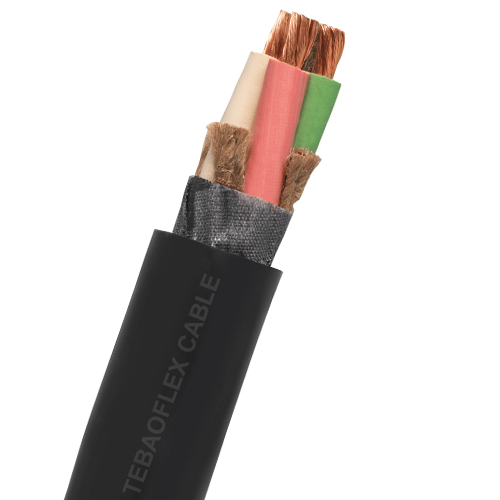

Type W Mining Cable Round 3 Cores

Voltage: 2000V
Core: 3C,Round
Conductor: Flexible tinned copper
Tape: Non-conducting
Insulation: 90°C ethylene-propylene rubber(EPR)
Outer sheath: Reinforced mold-cured thermosetting Chlorinated Polyethylene(CPE)
Outer sheath Color: Black, Blue, Green, Orange, Yellow, Red

Type W Mining Cable Round 4-5 Cores

Voltage: 2000V
Core: 3C,Round
Conductor: Flexible tinned copper
Tape: Non-conducting
Insulation: 90°C ethylene-propylene rubber(EPR)
Outer sheath: Reinforced mold-cured thermosetting Chlorinated Polyethylene(CPE)
Outer sheath Color: Black, Blue, Green, Orange, Yellow, Red

Type W Mining Cable Flat 2 Cores

Voltage: 2000V
Core: 2C, Flat
Conductor: Flexible tinned copper
Insulation: 90°C ethylene-propylene rubber(EPR)
Reinforcement: Synthetic yarnover assembly
Outer sheath: Mold-cured thermoset with cable identification via permanent marking
Outer sheath Color: Black

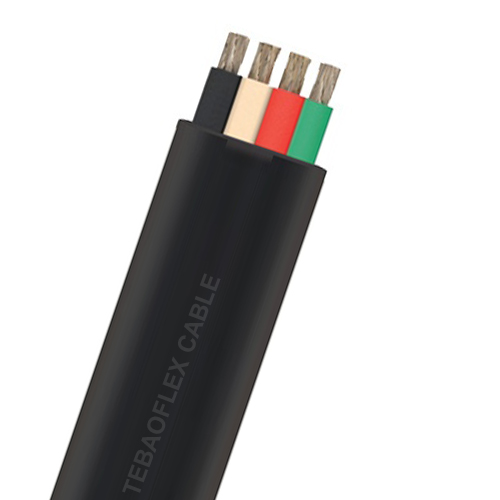

Type W Mining Cable Flat 4 Cores

Voltage: 2000V
Core: 4C, 5C Flat
Conductor: Flexible tinned copper
Insulation: 90°C ethylene-propylene rubber(EPR),Color coded,black,white,red,green.
Reinforcement: Synthetic yarnover assembly
Outer sheath: Mold-cured thermoset with cable identification via permanent marking
Outer sheath Color: Black

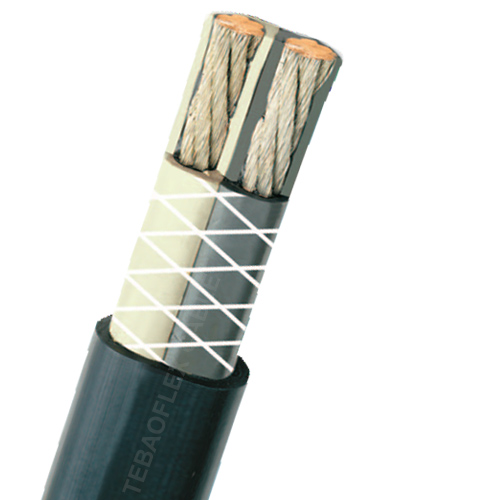

Type W Flat 2C Cable Application:

For use on D.C.off-track mining equipment.Especially designed for D.C.shuttle cars,drills,cutting and loading machines.Recommended maximum continuous conductor temperature is 90°C.

Type W Flat 4C Cable Application:

For use on A.C.off-track mining equipment.Especially designed for A.C.shuttle cars,drills,cutting and loading machines.Recommended maximum continuous conductor temperature is 90°C.

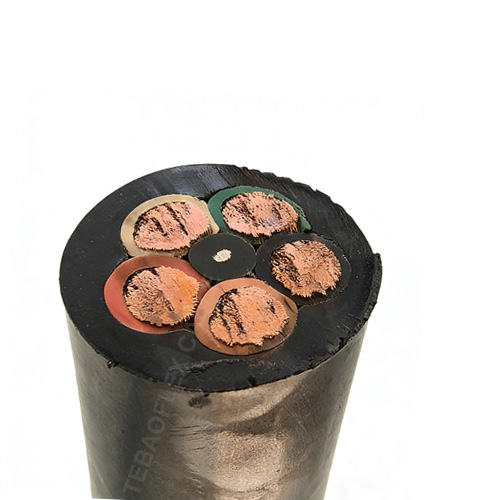

Type W Round 3~5Cores Cable Application:

Especially suitable for use with mobile mining equipment such as continuous miners,drills,cutters,loading machines and AC shuttle cars.Type W is for applications where bare grounding conductors are not required or desired.Recommended maximum continuous conductor temperature is 90°C.

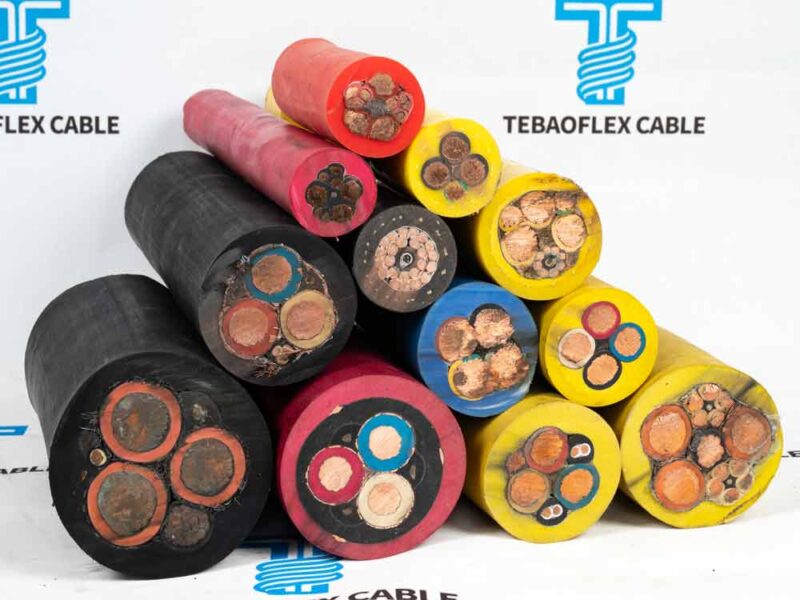

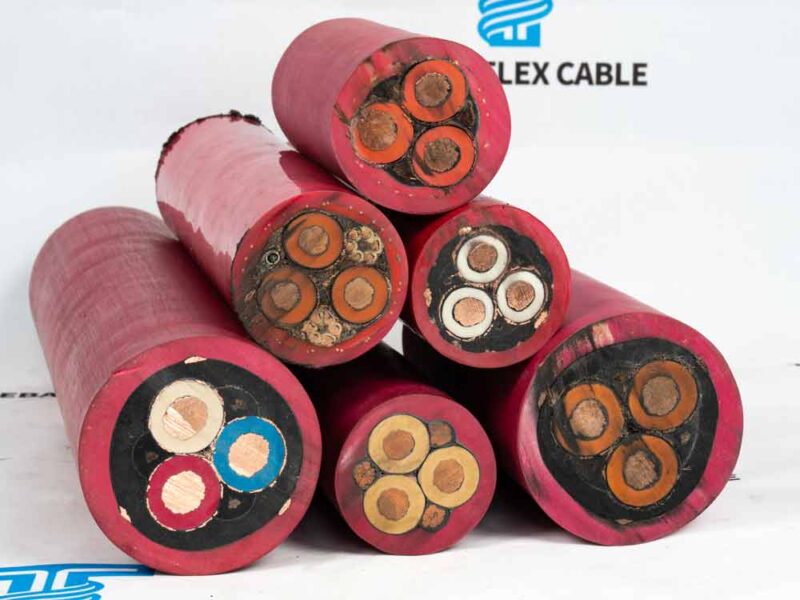

TEBAOFLEX Cable Sample Show

Type W Cable 3C Round Parameter

Power Conductors Nominal Outside Dimensions in. Approx. Weight lbs. per 1,000 ft. Ampacity*
40°C
Ambient Temp
Size AWG No. of Wires per   Conductor Insulation Thickness mils
8 133 60 0.91 550 59
6 133 60 1.01 730 79
4 259 60 1.17 1020 104
2 259 60 1.34 1430 138
1 259 80 1.51 1800 161
1/0 266 80 1.65 2140 186
2/0 323 80 1.75 2580 215
3/0 418 80 1.89 2922 249
4/0 532 80 2.04 3800 287

Type W Cable 4C Round Parameter

Power Conductors Nominal Outside Dimensions in. Approx. Weight lbs. per 1,000 ft. Ampacity*
40°C
Ambient Temp
Size AWG No. of Wires per   Conductor Insulation Thickness mils
8 133 60 0.99 670 54
6 133 60 1.1 890 72
4 259 60 1.27 1250 93
2 259 60 1.48 1800 122
1 259 80 1.68 2270 143
1/0 266 80 1.79 2680 165
2/0 323 80 1.93 3200 192
3/0 418 80 2.07 3627 221
4/0 532 80 2.26 4650 255

Type W Cable 4C Flat Parameter

Power Conductors Nominal Outside Dimensions in. Approx. Weight lbs. per 1,000 ft. Ampacity* 40°C Ambient Temp
Size AWG No. of Wires per   Conductor Insulation Thickness mils
6 133 7×19 60 0.68 x 1.71 910 72
4 259 7×37 60 0.76 x 1.91 1220 93
2 259 7×37 60 0.82 x 2.25 1720 122
1 259 7×37 60 0.98 x 2.54 2240 143

Our Cables Serve Various Industries

Ports

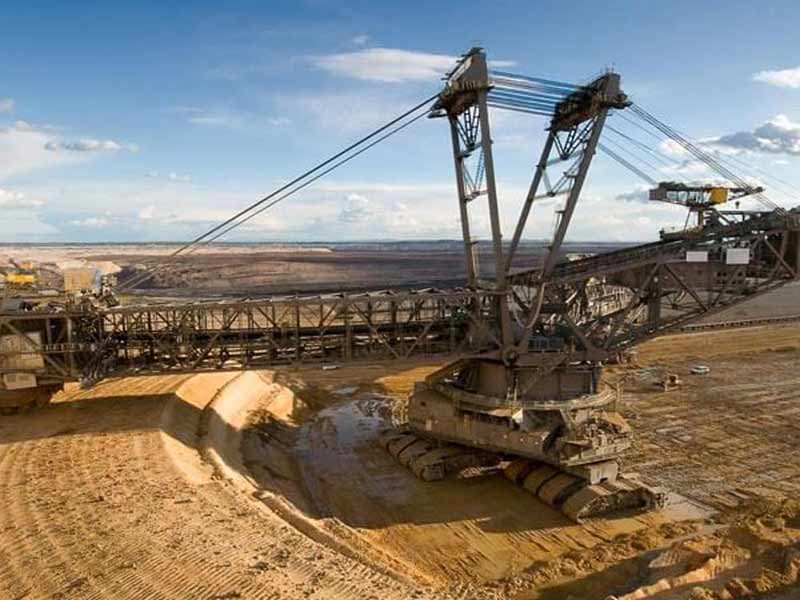

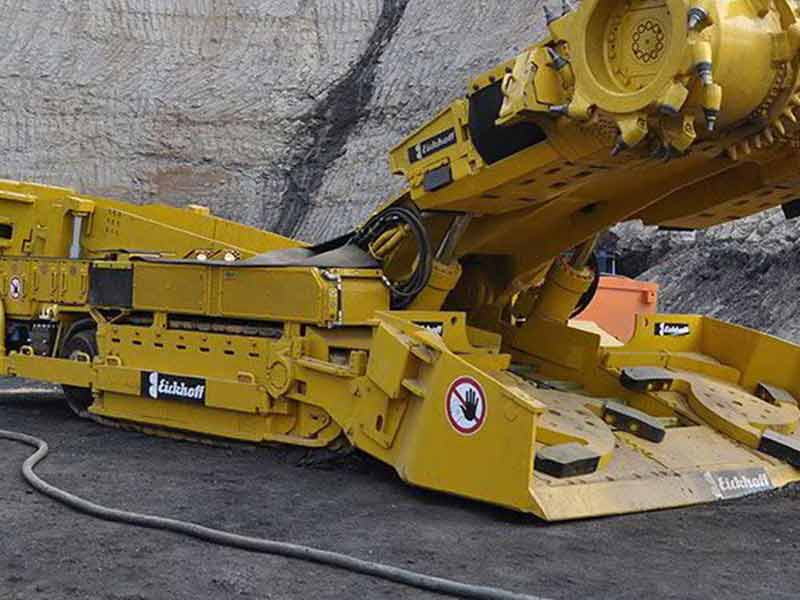

Cable for Surface Mining

Cable for Underground Mining

Cable for Open-cast Mining

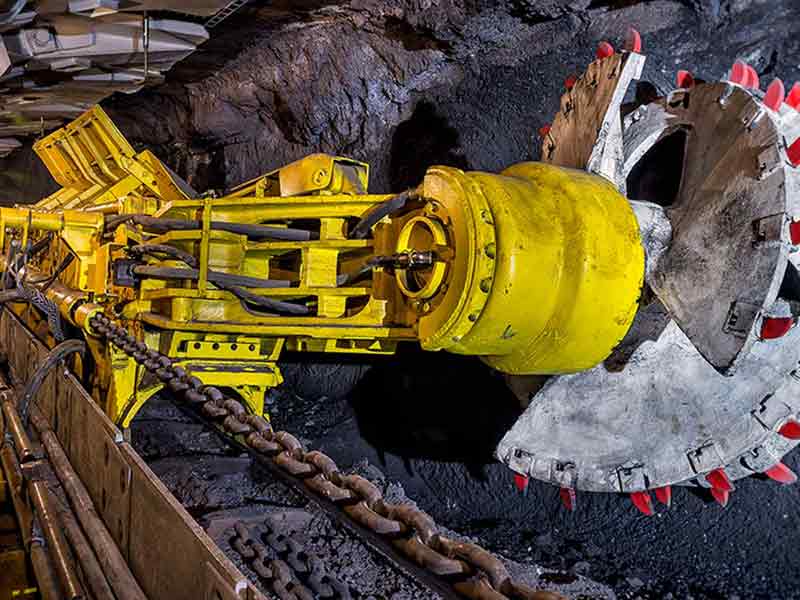

Cable used for Coal Mining machine

Cable for Trailing Operate

Cable Used or Tunneling
