TEBAOFLEX Mining Cables (VDE Strandard: NSSHCGEOEU,NTSKCGECWOEU, (N)3GHSSHCH,NSHTOEU etc ) & (IECA Standards: Type SHD-GC,PCG, GCG, Type G-GC, Type W, Type MP-GC) are used to power, control and monitor mining equipment in mines and quarries worldwide. TEBAOFLEX select the best quality materials for use in the manufacture of its Mining cables, TEBAOFLEX enjoys a reputation as one of the industry’s most trusted suppliers.
TEBAOFLEX Mining Cables are used in open-pit mining, tunnelling, and power supply in deep mines. The range of mining cables includes fixed and flexible cables up to 35 kV.
Can’t find what you are looking for? Please E-mail:info@tebaoflexcable.com
Mining Cable Construction
| The Mining Cable Construction | |
| Voltage: | 0.6/1kV, 3.6/6kV~18/30kV |
| Conductor: | FlexibleTinned copper，Class 5 |
| Insulation: | EPR or HEPR RubberType 3GI3 |
| Inner Sheath: | Rubber type 5GM5, GM1B |
| Outer Sheath: | PUR or CPE Rubber Type 5GM5 |
| Optical | |
| Pilot Core(optional): | Tinned copper conductor with EPR. |
| Earth Conductor (optional): | Spiral of tinned copper wires |
| Reinforcement Layer: | Polyester anti-torsion braid between the jackets embedded. |
| With Optical Fiber(FO) Cores | Fibre core diameter of fiber 9 μm, 62.5 μm or 50 μm; Diameter over cladding 125 μm; diameter over coating 250 μm; designs up to 24 fibers available |
VDE Standard Reeling&Chain&Trailing&Mining PUR Cable

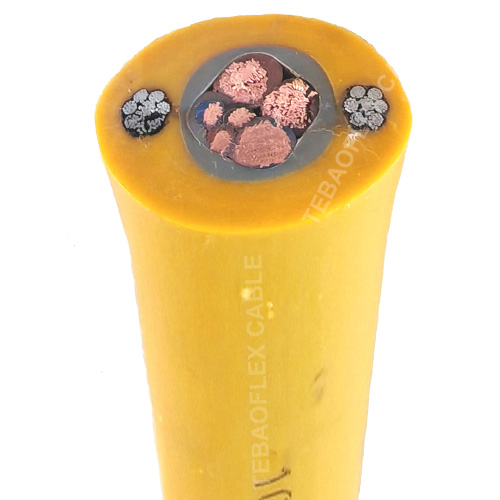

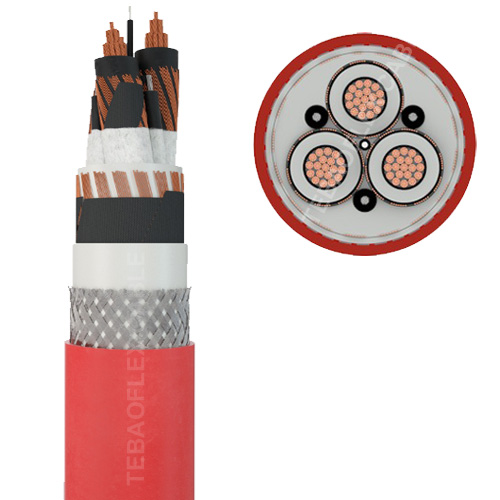

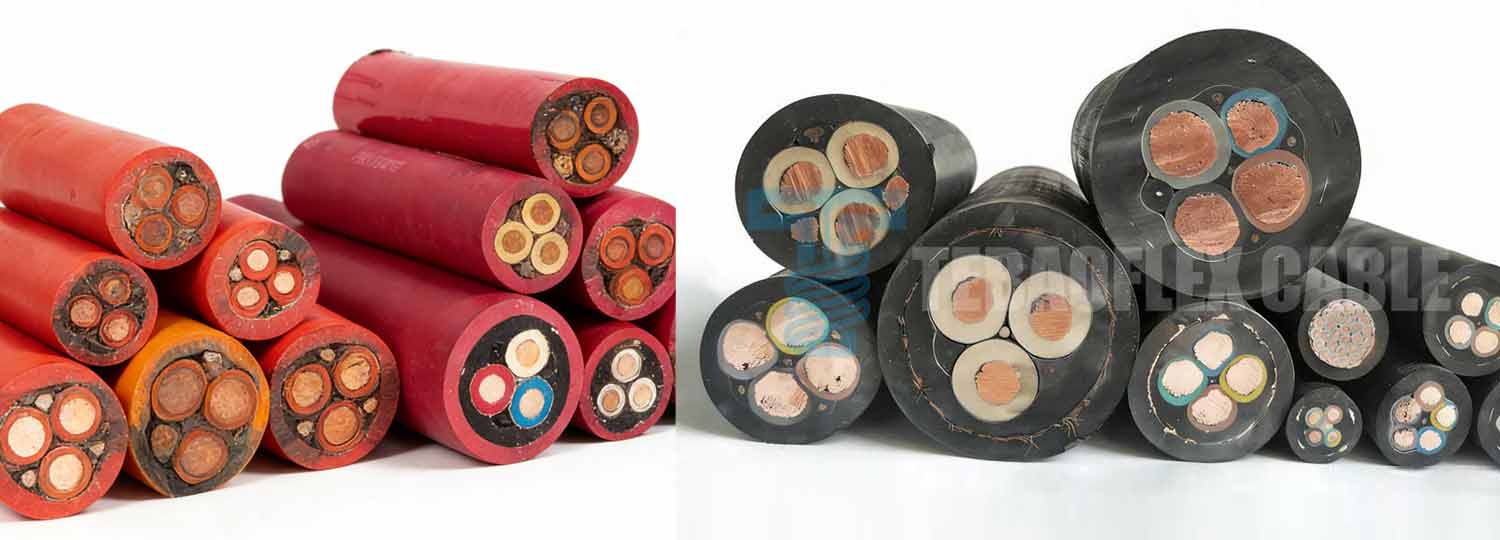

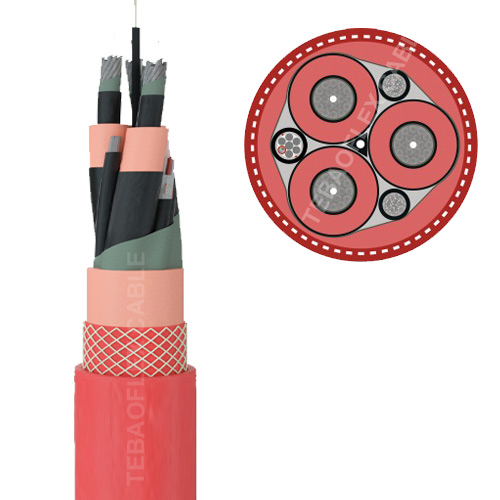

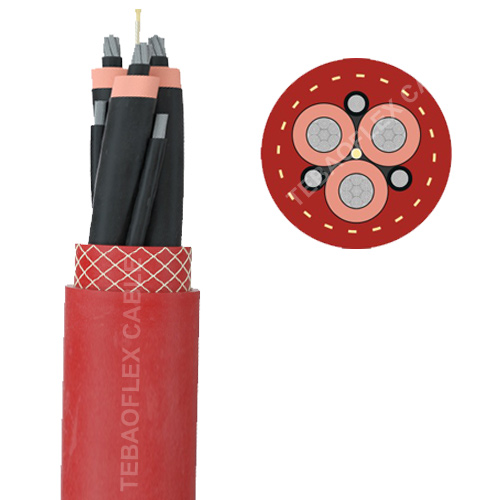

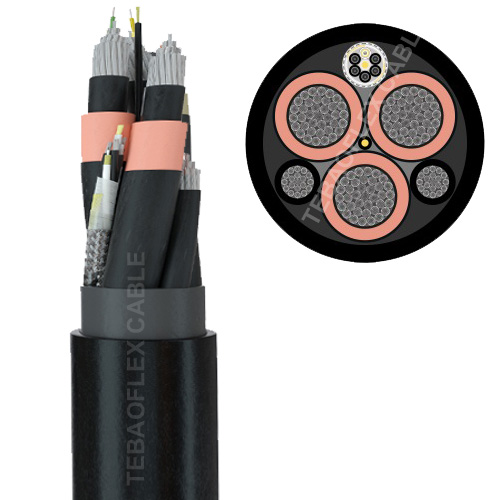

1.8/3kV~18/30kV MV Reeling Mining Cable (or with FO)
The Cable Types:
1.R-(N)TSCGEWOEU: MV reeling cable
2.(N)TSCGEWOEU-FO: MV reeling cable with integrated fiber optic
3.(N)TSKCGEWOEU: MV reeling cable with embedded sensor

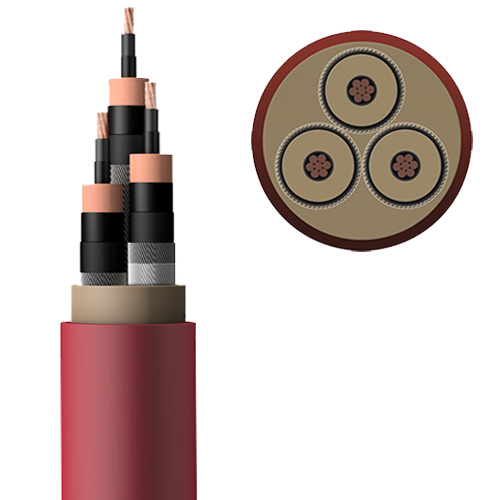

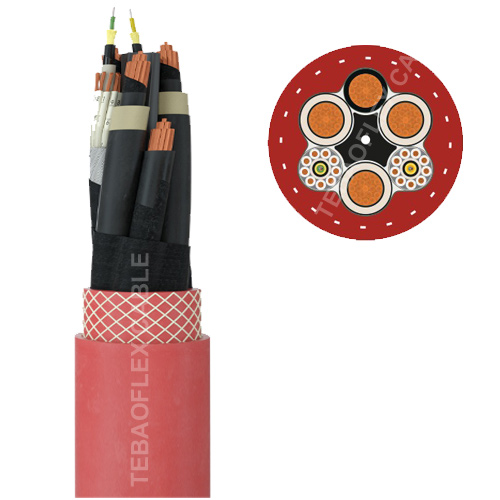

3.6/6 kV-12/20kV MV Trailing Rubber Mining Cable
The Cable Types:
1.NTSCGEWOEU: MV trailing cable abrasion and cold resistant (-50°)
2.NTSCGECEWOEU: MV trailing cable with or without metallic screen
3.(N)TSCGEWOEU / (N)TSCGECEWOEU: MV trailing cable with optimized dimensions
1.8/3kV-18/30kV MV Dredging Water resistant Mining Cable
The Cable Types:
1.NTSCGEWOEU: MV water resistant cable
2.NTSCGEWOEU 3E: MV water resistant cable with earth into interstices
1.8/3.3kV Mining Cable for Semi-flexible Installation
The Cable Types:
1.(N)TSCGEWOEU: MV cable for semi-flexible use
2.NSSHOEU: LV for semi-flexible use, water resistant
3.NSHXOEU: LV for semi-flexible use, LSOH
4.(N)SSHOEU: LV cable for semi-flexible use, with optimized dimensions
0.6/1kV~3.3/6kV Mining Cable Chain &Trailing for Shearer
The Cable Types
1.NSSHCGEOEU: LV chain cable for shearers with double screen techn., and cold removable semi-con. layer
2.(N)TSKCGEWOEU:MV chain cable for shearers with single screen techn.,and cold removable semi-con. layer
3.NSSHKCGEOEU: LV chain cable for shearers with single screen Techn, and semi-con. inner sheath
4.NSSHKCGEOEU: LV trailing cable for shearers with double screen techn. cold removable semi-con. layer and steel armoured

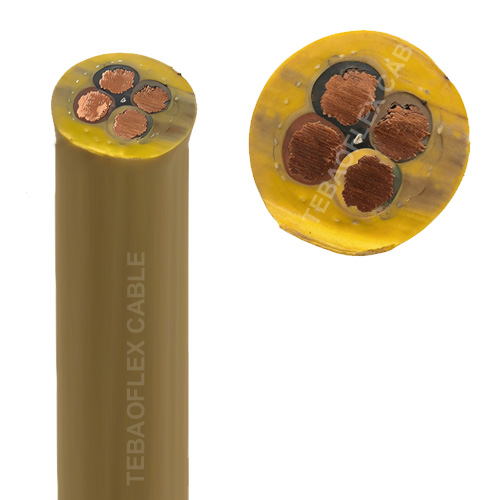

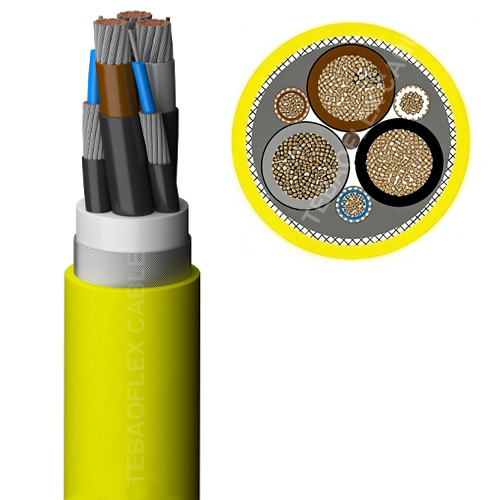

0.6/1kV Reeling Underground Mining Cable or LDHs
The Cable Types
1.NTSKCGEWOEU:LV reeling cable with single screen techn. and semi-con. inner sheath
2.(N)SSHCGEOEU:LV reeling cable with single screen techn. and cold removable semi-con. Layer
3.NSHTOEU:LV reeling cable for fast-moving LHDs, rubber sheathed
4.D2X11Y:LV reeling cable for slow-moving LHDs, PUR sheathed, halogen-free
6/10kV~18/30kV Reeling Underground Mining Cable for TBM
The Cable Types：
1.N)TSCGECWOEU:MV reeling cable for TBMs, with double screen techn. and cold removable semi-con. Layer
2.(N)TSCGECWHXOEU:MV reeling cable for TBMs, with double screen techn., cold removable semi-con. layer, LSOH
3.(N)TSCGEWOEU:MV reeling cable for TBMs, with single screen techn.
0.6/1kV~18/30kV Tunnel&Underground Mine for Semi-fixed Install
The Cable types:
1.NTSKCGECWOEU:MV cable for semi-flexible use, with double screen techn. and cold removable semi-con. layer
2.(N)3GHSSYCY:MV armoured cable for fixed installation, with double screen techn. cold removable semi-con. layer
3.(N)3GHSSHCH:MV armoured cable for fixed installation, with double screen techn. cold removable semi-con. layer, LSOH
4.NSSHOEU:LV cable for semi-flexible use with individual concentric earth
ICEA Standard Type W, SHD-GC/PCG/CCG, MP-GC Mining Cable
| Type | Application |
| Type W | For use on mobile mining equipment such as continuous miners, drills, cutters, loading machines, AC shuttle cars and pumps |
| Type G | For use on D.C. off-track mining equipment. Especially designed for D.C. shuttle cars, drills, cutting and loading machines |
| Type G-GC | For use on D.C. off-track mining equipment. Especially designed for D.C. shuttle cars, drills, cutting and loading machines |
| Type SHD-GC | Heavy duty portable cable, designed for longwall shearers, continuous miners and mobile equipment |
| Type SHD-PCG | Three shielded power conductors & unshielded control conductors, and a grounding conductor are required. designed for longwall shearers. |
| Type SHD-GCG | Designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps, and other mobile equipment |
| Type MP-GC | Connections between units of mine distribution systems for direct burial in wet and dry locations. |

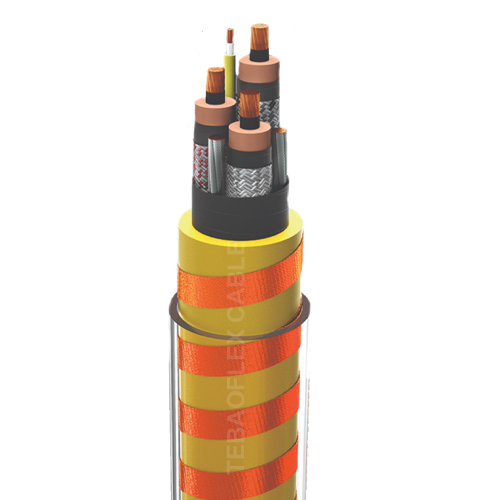

Type SHD-GC Mining Cable
Voltage: 2kV, 5kV, 8kV
Conductor: flexible tinned copper
Insulation: EPR
Ground Conductor: Two bunched or rope lay stranded bare or tin coated,uninsulated copper
Ground Check Conductor: One stranded bare or tin coated copper with yellow EPDM insulation
Braid Shield: Soft drawn annealed copper braid served over each conductor
Outer Jacket: CPE
Type SHD-CGC Mining Cable
Voltage: 2kV, 5kV
Conductor: flexible tinned copper
Insulation: EPR
Ground Conductor: Two bunched or rope lay stranded bare or tin coated,uninsulated copper
Ground Check Conductor: One stranded bare or tin coated copper with yellow EPDM insulation
Braid Shield: Soft drawn annealed copper braid served over each conductor
Outer Jacket: CPE
Type SHD-PCG Mining Cable
Voltage: 2kV, 5kV
Conductor: flexible tinned copper
Insulation: EPR
Ground 3 Conductor: Flexible tinned copper EPR insulation color coded black, white, red and an overall thermosetting jacket
Ground Check Conductor: One stranded bare or tin coated copper with yellow EPDM insulation
Braid Shield: Soft drawn annealed copper braid served over each conductor
Outer Jacket: CPE
Type G-GC Mining Cable
Voltage: 2kV
Conductor: Flexible tinned copper
Ground Wire: flexible tinned copper with green covering
Ground Check Conductor: flexible tinned copper with yellow insulation
Insulation: EPR
Outer Jacket: JacketMold-cured thermoset with cable identificationvia permanent marking.
Type W 3C Round Mining Cable
Voltage: 2000V
Core: 3C,Round
Conductor: Flexible tinned copper
Insulation: EPR Rubber
Outer sheath: CPE
Sheath Color: Black, Blue, Green, Orange, Yellow, Red
Type W 4C, 5C Round Mine Cable
Voltage: 2000V
Core: 4C, 5C, Round
Conductor: Flexible tinned copper
Insulation: EPR Rubber
Outer sheath: CPE
Sheath Color: Black, Blue, Green, Orange, Yellow, Red
Type W 3~4C Flat Mining Cable
Voltage: 2000V
Core: 2C, 4C, Flat
Conductor: Flexible tinned copper
Insulation: EPR Rubber
Reinforcement: Synthetic yarnover assembly
Outer sheath: CPE
Sheath Color: Black
Type MP-GC Mine Feeder Cable
Voltage: 2kV, 5kV, 8kV
Conductor: Copper Class 2
Ground Wire Conductor: Tinned Copper
Ground Check Conductor: 8 AWG 7-wire copper with yellow polypropylene insulation
Insulation: (XLPE
Outer Jacket: Polyvinyl chloride (PVC)
| Number of Cores×Nominal Cross Section | Minimum Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| 3×25+2×25/2+12×LWL | 39 | 42 | 2410 |
| 3×35+2×25/2+12×LWL | 42 | 45 | 2995 |
| 3×50+2×25/2+12×LWL | 45 | 48 | 3645 |
| 3×70+2×35/2+12×LWL | 50 | 54 | 4760 |
| 3×95+2×50/2+12×LWL | 54 | 58 | 5580 |
| 3×120+2×70/2+12×LWL | 58 | 62 | 6690 |
| 3×150+2×70/2+12×LWL | 63 | 67 | 7990 |
| 3×185+2×95/2+12×LWL | 67 | 72 | 9330 |
| Cross Section | Overall Diameter | Appro. Weight (kg/km) |
| (mm²) | min-max (mm) | |
| 3×2.5+3×2.5/3E | 16-19 | 350 |
| 3×4+3×4/3E | 19-22 | 500 |
| 3×6+3×6/3E | 20-23 | 600 |
| 3×10+3×10/3E | 24-28 | 950 |
| 3×16+3×16/3E | 27-30 | 1200 |
| 3x 25+3×16/3E | 29-33 | 1800 |
| 3×35+3xl6/3E | 34-38 | 2300 |
| 3×50+3×25/3E | 40-44 | 3300 |
| 3×70+3×35/3E | 44-48 | 4100 |
| 3×95+3×50/3E | 50-55 | 5500 |
| 3×120+3×70/3E | 55-60 | 6800 |
| 3×150+3×70/3E | 59-64 | 8000 |
| Number and cross-sectional area of conductor | Maximum diameter of wires in conductor | Nominal thickness of insulation |
Nominal thickness of sheath | Approximate overall diameter |
Approximate net weight of cables | Maximum conductor resistance at 200C | |
| Inner | Outer | ||||||
| nx mm2 | mm | mm | mm | mm | kg/km | Ω/km | |
| 4×50 | 0.41 | 1.6 | 2 | 3.5 | 41 | 3368 | 0.393 |
| 4×70 | 0.51 | 1.6 | 2 | 3.5 | 46 | 4367 | 0.277 |
| 4×95 | 0.51 | 1.8 | 2.4 | 4 | 54.3 | 5562 | 0.21 |
| 4×120 | 0.51 | 1.8 | 2.8 | 4.5 | 57.3 | 6873 | 0.164 |
| 4×150 | 0.51 | 2 | 2.8 | 4.5 | 64.2 | 8350 | 0.132 |
| 5×1.5 | 0.26 | 0.8 | 1 | 1.6 | 13.6 | 269 | 13.7 |
| 5×2.5 | 0.26 | 0.9 | 1.2 | 2 | 16.6 | 421 | 8.21 |
| 5×6 | 0.31 | 1 | 1.4 | 2.2 | 21.4 | 764 | 3.39 |
| 5×10 | 0.41 | 1.2 | 1.4 | 2.2 | 25 | 1072 | 1.95 |
| 5×16 | 0.41 | 1.2 | 1.6 | 2.5 | 29 | 1533 | 1.24 |
| 7×1.5 | 0.26 | 0.8 | 1.2 | 2 | 16.9 | 415 | 13.7 |
| 7×2.5 | 0.26 | 0.9 | 1.2 | 2 | 19.1 | 556 | 8.21 |
| 7×4 | 0.31 | 1 | 1.4 | 2.2 | 22.7 | 796 | 5.09 |
| 10×4 | 0.31 | 1 | 1.4 | 2.2 | 26 | 1007 | 5.09 |
| 12×1.5 | 0.26 | 0.8 | 1.4 | 2.2 | 20.3 | 599 | 13.7 |
| 12×2.5 | 0.26 | 0.9 | 1.4 | 2.2 | 23.1 | 813 | 8.21 |
| 18×1.5 | 0.26 | 0.8 | 1.4 | 2.2 | 22.9 | 789 | 13.7 |
| 18×2.5 | 0.26 | 0.9 | 1.6 | 2.5 | 27.3 | 1156 | 8.21 |
| 18×4 | 0.31 | 1 | 1.8 | 3 | 43.4 | 1837 | 5.09 |
| 24×1.5 | 0.26 | 0.8 | 1.4 | 2.2 | 26 | 985 | 13.7 |
| 24×2.5 | 0.26 | 0.9 | 1.4 | 2.2 | 31.1 | 1454 | 8.21 |
| 36×1.5 | 0.26 | 0.8 | 1.6 | 2.5 | 30 | 1297 | 13.7 |
| 36×2.5 | 0.26 | 0.9 | 1.8 | 3 | 36.3 | 2075 | 8.21 |
| 37×1.5 | 0.26 | 0.8 | 1.6 | 2.5 | 31 | 1343 | 13.7 |
| 3×2.5+1.5 | 0.26/0.26 | 0.9/0.8 | 1.2 | 2 | 16.5 | 346 | 8.21/13.7 |
| 3×4+2.5 | 0.31/0.26 | 1.0/0.9 | 1.2 | 2 | 18.1 | 439 | 5.09/8.21 |
| 3×6+2.5 | 0.31/0.26 | 1.0/0.9 | 1.2 | 2 | 19.2 | 520 | 3.39/8.21 |
| 3×6+4 | 0.31/0.31 | 1.0/1.0 | 1.2 | 2 | 19.6 | 544 | 3.39/5.09 |
| 3×16+10 | 0.41/0.41 | 1.2/1.2 | 1.6 | 2.5 | 27.3 | 1164 | 1.24/1.95 |
| 3×25+16 | 0.41/0.41 | 1.4/1.2 | 1.8 | 3 | 32.2 | 1698 | 0.795/1.24 |
| 3×35+16 | 0.41/0.41 | 1.4/1.2 | 1.8 | 3 | 33.5 | 2021 | 0.565/1.24 |
| 3×70+35 | 0.51/0.41 | 1.6/1.4 | 2 | 3.9 | 46 | 4123 | 0.277/0.565 |
| Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor Size | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | ||||
| No. of cores×AWG/kcmil | – | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 3×6 | 133 | 10 | 10 | 0.07 | 1.8 | 0.155 | 3.9 | 1.29 | 32.8 | 1130 | 1682 | 93 |
| 3×4 | 259 | 8 | 10 | 0.07 | 1.8 | 0.155 | 3.9 | 1.4 | 35.6 | 1460 | 2173 | 122 |
| 3×3 | 259 | 7 | 10 | 0.07 | 1.8 | 0.17 | 4.3 | 1.51 | 38.3 | 1680 | 2500 | 140 |
| 3×2 | 259 | 6 | 10 | 0.07 | 1.8 | 0.17 | 4.3 | 1.59 | 40.4 | 1990 | 2961 | 159 |
| 3×1 | 259 | 5 | 8 | 0.08 | 2 | 0.19 | 4.8 | 1.76 | 44.7 | 2385 | 3549 | 184 |
| 3×1/0 | 266 | 4 | 8 | 0.08 | 2 | 0.19 | 4.8 | 1.86 | 47.2 | 2765 | 4115 | 211 |
| 3×2/0 | 329 | 3 | 8 | 0.08 | 2 | 0.205 | 5.2 | 2 | 50.8 | 3255 | 4844 | 243 |
| 3×3/0 | 418 | 2 | 8 | 0.08 | 2 | 0.205 | 5.2 | 2.13 | 54.1 | 3890 | 5789 | 279 |
| 3×4/0 | 532 | 1 | 8 | 0.08 | 2 | 0.22 | 5.6 | 2.31 | 58.7 | 4720 | 7024 | 321 |
| 3×250 | 627 | 1/0 | 6 | 0.095 | 2.4 | 0.22 | 5.6 | 2.51 | 63.8 | 5460 | 8125 | 355 |
| 3×300 | 741 | 1/0 | 6 | 0.095 | 2.4 | 0.235 | 6 | 2.68 | 68.1 | 6395 | 9517 | 398 |
| 3×350 | 888 | 2/0 | 6 | 0.095 | 2.4 | 0.235 | 6 | 2.81 | 71.4 | 7280 | 10834 | 435 |
| 3×500 | 1221 | 4/0 | 6 | 0.095 | 2.4 | 0.265 | 6.7 | 3.19 | 81 | 9820 | 14614 | 536 |
| Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor Size | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Sheath Thickness | Nominal Weight | Ampacity | ||||
| No. of cores×AWG/kcmil | – | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 3×6 | 133 | 10 | 8 | 0.11 | 2.8 | 0.185 | 4.7 | 1.56 | 39.6 | 1560 | 2322 | 93 |
| 3×4 | 259 | 8 | 8 | 0.11 | 2.8 | 0.185 | 4.7 | 1.68 | 42.7 | 1895 | 2820 | 122 |
| 3×2 | 259 | 6 | 8 | 0.11 | 2.8 | 0.205 | 5.2 | 1.87 | 47.5 | 2445 | 3639 | 159 |
| 3×1 | 259 | 5 | 8 | 0.11 | 2.8 | 0.205 | 5.2 | 1.95 | 49.5 | 2800 | 4167 | 184 |
| 3×1/0 | 266 | 4 | 8 | 0.11 | 2.8 | 0.22 | 5.6 | 2.08 | 52.8 | 3230 | 4807 | 211 |
| 3×2/0 | 329 | 3 | 8 | 0.11 | 2.8 | 0.22 | 5.6 | 2.2 | 55.9 | 3800 | 5655 | 243 |
| 3×3/0 | 418 | 2 | 8 | 0.11 | 2.8 | 0.235 | 6 | 2.36 | 59.9 | 4475 | 6660 | 279 |
| 3×4/0 | 532 | 1 | 8 | 0.11 | 2.8 | 0.235 | 6 | 2.5 | 63.5 | 5265 | 7835 | 321 |
| 3×250 | 627 | 1/0 | 6 | 0.12 | 3 | 0.25 | 6.4 | 2.69 | 68.3 | 6105 | 9085 | 355 |
| 3×300 | 741 | 1/0 | 6 | 0.12 | 3 | 0.25 | 6.4 | 2.81 | 71.4 | 6875 | 10231 | 398 |
| 3×350 | 888 | 2/0 | 6 | 0.12 | 3 | 0.265 | 6.7 | 2.95 | 74.9 | 7795 | 11600 | 435 |
| 3×500 | 1221 | 4/0 | 6 | 0.12 | 3 | 0.28 | 7.1 | 3.31 | 84.1 | 10415 | 15499 | 536 |
| Construction | No. of Strands | Grounding Conductor Size | Ground Check Conductor Size | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | ||||
| No. of cores×AWG/kcmil | – | AWG/kcmil | AWG/kcmil | inch | mm | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 3×6 | 133 | 10 | 10 | 0.07 | 1.8 | 0.155 | 3.9 | 1.29 | 32.8 | 1130 | 1682 | 93 |
| 3×4 | 259 | 8 | 10 | 0.07 | 1.8 | 0.155 | 3.9 | 1.4 | 35.6 | 1460 | 2173 | 122 |
| 3×3 | 259 | 7 | 10 | 0.07 | 1.8 | 0.17 | 4.3 | 1.51 | 38.3 | 1680 | 2500 | 140 |
| 3×2 | 259 | 6 | 10 | 0.07 | 1.8 | 0.17 | 4.3 | 1.59 | 40.4 | 1990 | 2961 | 159 |
| 3×1 | 259 | 5 | 8 | 0.08 | 2 | 0.19 | 4.8 | 1.76 | 44.7 | 2385 | 3549 | 184 |
| 3×1/0 | 266 | 4 | 8 | 0.08 | 2 | 0.19 | 4.8 | 1.86 | 47.2 | 2765 | 4115 | 211 |
| 3×2/0 | 329 | 3 | 8 | 0.08 | 2 | 0.205 | 5.2 | 2 | 50.8 | 3255 | 4844 | 243 |
| 3×3/0 | 418 | 2 | 8 | 0.08 | 2 | 0.205 | 5.2 | 2.13 | 54.1 | 3890 | 5789 | 279 |
| 3×4/0 | 532 | 1 | 8 | 0.08 | 2 | 0.22 | 5.6 | 2.31 | 58.7 | 4720 | 7024 | 321 |
| 3×250 | 627 | 1/0 | 6 | 0.095 | 2.4 | 0.22 | 5.6 | 2.51 | 63.8 | 5460 | 8125 | 355 |
| 3×300 | 741 | 1/0 | 6 | 0.095 | 2.4 | 0.235 | 6 | 2.68 | 68.1 | 6395 | 9517 | 398 |
| 3×350 | 888 | 2/0 | 6 | 0.095 | 2.4 | 0.235 | 6 | 2.81 | 71.4 | 7280 | 10834 | 435 |
| 3×500 | 1221 | 4/0 | 6 | 0.095 | 2.4 | 0.265 | 6.7 | 3.19 | 81 | 9820 | 14614 | 536 |
| Construction | No. of Strands | Nominal Insulation Thickness | Nominal Overall Diameter Height×Width | Nominal Weight | Ampacity | |||
| No. of cores×AWG/kcmil | – | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 4×6 | 133 | 0.06 | 1.5 | 0.67×1.69 | 17.0×42.9 | 895 | 1332 | 72 |
| 4×4 | 259 | 0.06 | 1.5 | 0.75×1.89 | 19.0×48.0 | 1185 | 1764 | 93 |
| 4×2 | 259 | 0.06 | 1.5 | 0.84×2.23 | 20.6×56.6 | 1620 | 2411 | 122 |
| 4×1 | 259 | 0.08 | 2 | 0.97×2.60 | 24.6×66.0 | 2100 | 3125 | 143 |
| 4×1/0 | 259 | 0.08 | 2 | 1.01×2.73 | 25.7×69.3 | 2500 | 3721 | 165 |
| 4×2/0 | 329 | 0.08 | 2 | 1.10×2.96 | 27.9×75.2 | 2900 | 4316 | 192 |
| 4×3/0 | 413 | 0.08 | 2 | 1.18×3.25 | 30.0×82.6 | 3500 | 5209 | 221 |
| 4×4/0 | 532 | 0.08 | 2 | 1.29×3.46 | 32.8×87.9 | 4225 | 6288 | 255 |
| onstruction | No. of Strands | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | |||
| No. of cores×AWG/kcmil | – | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 3×8 | 133 | 0.06 | 1.5 | 0.91 | 23.1 | 550 | 818 | 59 |
| 3×6 | 133 | 0.06 | 1.5 | 1.01 | 25.7 | 730 | 1086 | 79 |
| 3×4 | 259 | 0.06 | 1.5 | 1.17 | 29.7 | 1020 | 1518 | 104 |
| 3×2 | 259 | 0.06 | 1.5 | 1.34 | 34 | 1430 | 2128 | 138 |
| 3×1 | 259 | 0.08 | 2 | 1.51 | 38.4 | 1800 | 2678 | 161 |
| 3×1/0 | 266 | 0.08 | 2 | 1.65 | 41.9 | 2140 | 3184 | 186 |
| 3×2/0 | 342 | 0.08 | 2 | 1.75 | 44.5 | 2580 | 3839 | 215 |
| 3×3/0 | 418 | 0.08 | 2 | 1.89 | 48 | 2922 | 4347 | 249 |
| 3×4/0 | 532 | 0.08 | 2 | 2.04 | 51.8 | 3800 | 5654 | 287 |
| 3×250 | 741 | 0.095 | 2.4 | 2.39 | 60.7 | 4368 | 6500 | 320 |
| 3×350 | 888 | 0.095 | 2.4 | 2.66 | 67.5 | 5895 | 8772 | 394 |
| 3×500 | 1221 | 0.095 | 2.4 | 2.98 | 75.8 | 7820 | 11638 | 487 |
| Power Conductors | Nominal Outside Dimensions in. | Approx. Weight lbs. per 1,000 ft. | Ampacity* 40°C Ambient Temp |
||
| Size AWG | No. of Wires per Conductor | Insulation Thickness mils | |||
| 8 | 133 | 60 | 0.99 | 670 | 54 |
| 6 | 133 | 60 | 1.1 | 890 | 72 |
| 4 | 259 | 60 | 1.27 | 1250 | 93 |
| 2 | 259 | 60 | 1.48 | 1800 | 122 |
| 1 | 259 | 80 | 1.68 | 2270 | 143 |
| 1/0 | 266 | 80 | 1.79 | 2680 | 165 |
| 2/0 | 323 | 80 | 1.93 | 3200 | 192 |
| 3/0 | 418 | 80 | 2.07 | 3627 | 221 |
| 4/0 | 532 | 80 | 2.26 | 4650 | 255 |
| Construction | No. of Strands | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight | Ampacity | |||
| No. of cores×AWG/kcmil | – | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 5×8 | 133 | 0.06 | 1.5 | 1.07 | 27.2 | 776 | 1154 | 50 |
| 5×6 | 133 | 0.06 | 1.5 | 1.24 | 31.5 | 1024 | 1524 | 68 |
| 5×4 | 259 | 0.06 | 1.5 | 1.36 | 35.2 | 1432 | 2131 | 88 |
| 5×2 | 259 | 0.06 | 1.5 | 1.56 | 39.8 | 2051 | 3052 | 116 |
| 5×1 | 259 | 0.06 | 1.5 | 1.85 | 47.1 | 2665 | 3967 | 136 |
| 5×1/0 | 266 | 0.08 | 2 | 1.98 | 50.4 | 3406 | 5069 | 150 |
| 5×2/0 | 342 | 0.08 | 2 | 2.13 | 54.1 | 3596 | 5351 | 172 |
| 5×3/0 | 418 | 0.08 | 2 | 2.27 | 57.6 | 4728 | 7035 | 200 |
| 5×4/0 | 532 | 0.08 | 2 | 2.46 | 62.6 | 5512 | 8203 | 230 |
Our products are certified
The Mining Cables Application Scenarios
Cable for Surface Mining
Cable for Underground Mining
Cable for Open-cast Mining
Cable used for Coal Mining machine
Cable for Trailing Operate
