| Type | Application |
| Type W | For use on mobile mining equipment such as continuous miners, drills, cutters, loading machines, AC shuttle cars and pumps |
| Type G | For use on D.C. off-track mining equipment. Especially designed for D.C. shuttle cars, drills, cutting and loading machines |
| Type G-GC | For use on D.C. off-track mining equipment. Especially designed for D.C. shuttle cars, drills, cutting and loading machines |
| Type SHD-GC | Heavy duty portable cable, designed for longwall shearers, continuous miners and mobile equipment |
| Type SHD-PCG | Three shielded power conductors & unshielded control conductors, and a grounding conductor are required. designed for longwall shearers. |
| Type SHD-GCG | Designed for applications such as longwall shearers, continuous miners, loaders, drills, conveyors, pumps, and other mobile equipment |
| Type MP-GC | Connections between units of mine distribution systems for direct burial in wet and dry locations. |

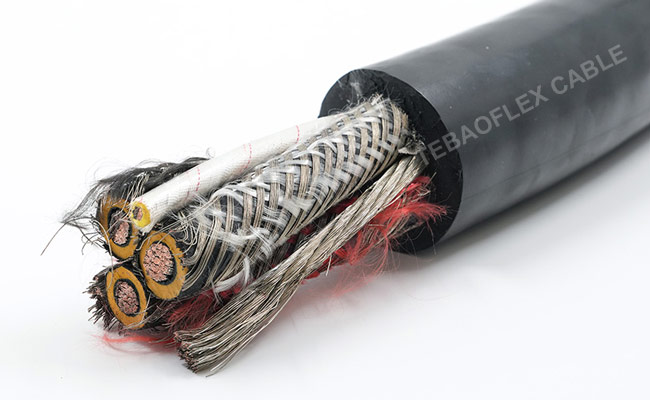

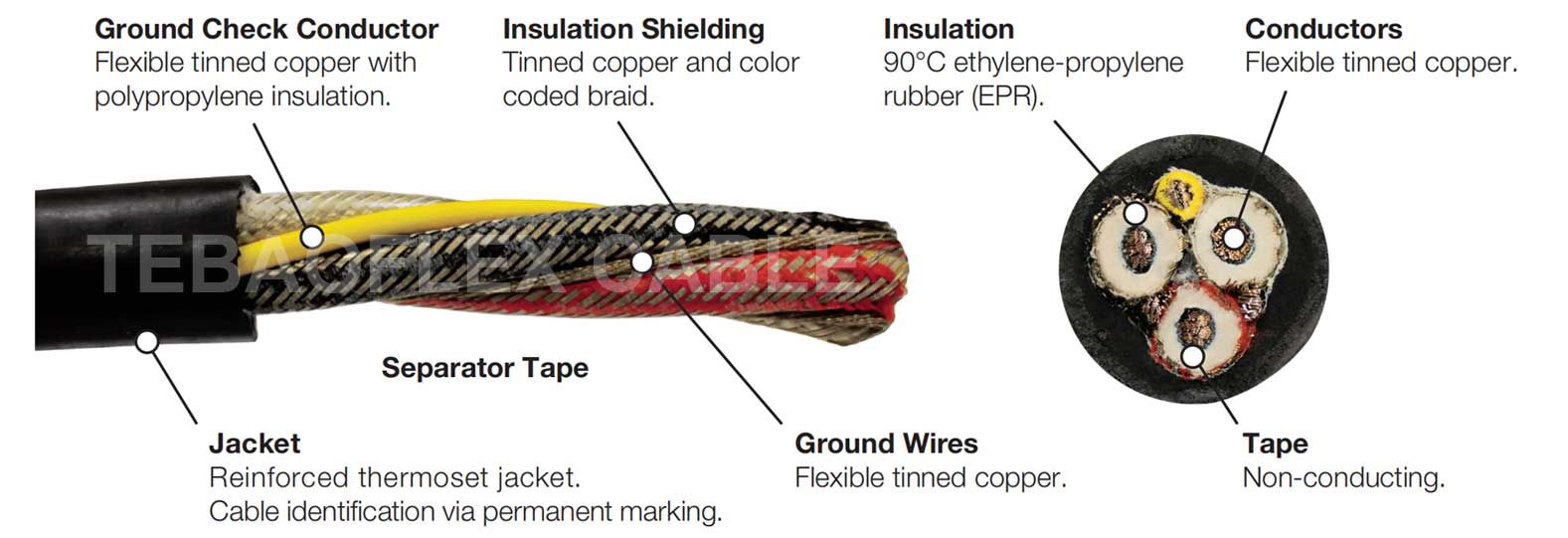

Type SHD-GC Rubber Mining Cable
Voltage: 2kV, 5kV, 8kV
Conductor: flexible bare copper or tinned copper
Insulation: colour-coded 90°C Ethylene Propylene Diene Monomer (EPDM)
Ground Conductor: Two bunched or rope lay stranded bare or tin coated,uninsulated copper
Ground Check Conductor: One stranded bare or tin coated copper with yellow Ethylene Propylene Diene Monomer (EPDM) insulation
Braid Shield: Soft drawn annealed copper braid served over each conductor
Outer Jacket: Flame-retardant, oil & sunlight resistant Chlorinated Polyethylene (CPE) rated temperature 90°C
Options: Other sizes, colours and custom designs available upon request
Ethylene Propylene Rubber (EPR) insulation available upon request

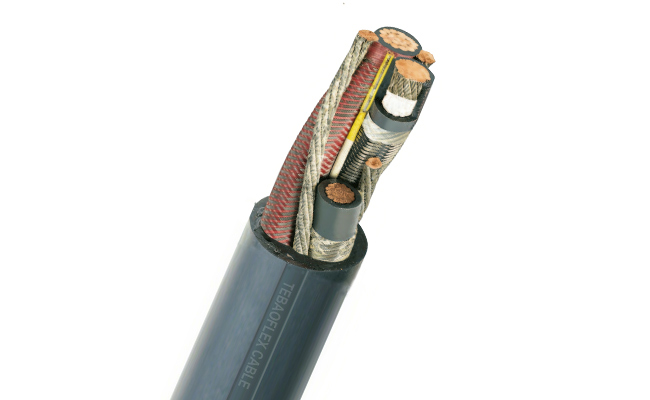

Type SHD-CGC Rubber Mining Cable
Voltage: 2kV, 5kV
Conductor: Flexible tinned copper
Strand Shield: Semi-conducting layer
Insulation: 90°C ethylenepropylene rubber (EPR)
Ground Wires: Flexible tinned copper
Ground Check Conductor: Flexible tinned copper with yellow insulation located in the center of the cable
Insulation Shield: Tinned copper and color-coded nylon braid
Outer Jacket: Reinforced mold-cured thermosetting Chlorinated Polyethylene (CPE) Jacket.
Options: Other sizes, colours and custom designs available upon request
Ethylene Propylene Rubber (EPR) insulation available upon request

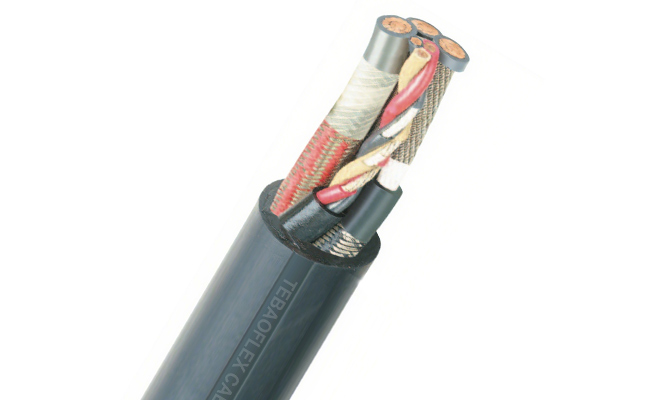

Type SHD-PCG Rubber Mining Cable
Voltage: 2kV, 5kV
Conductor: Flexible tinned copper
Strand Shield: Semi-conducting
Insulation: 90°C ethylene propylene rubber (EPR)
Ground 3 Conductors: Flexible tinned copper ethylene polypropylene rubber insulation color coded black, white, red and an overall thermosetting jacket
Ground Conductor: Flexible tinned copper located in the center of the cable
Insulation Shield: Tinned copper and color-coded nylon braid
Outer Jacket: Reinforced mold-cured thermosetting Chlorinated Polyethylene (CPE) Jacket.
Options: Other sizes, colours and custom designs available upon request
Ethylene Propylene Rubber (EPR) insulation available upon request
Type W Round/Flat Mining Cable
Voltage: 2000V
Core: 3,4C,Round,2,4 flat
Conductor: Flexible tinned copper
Tape: Non-conducting
Insulation: 90°C ethylene-propylene rubber(EPR)
Outer sheath: Reinforced mold-cured thermosetting Chlorinated Polyethylene(CPE)
Outer sheath Color: Black, Blue, Green, Orange, Yellow, Red

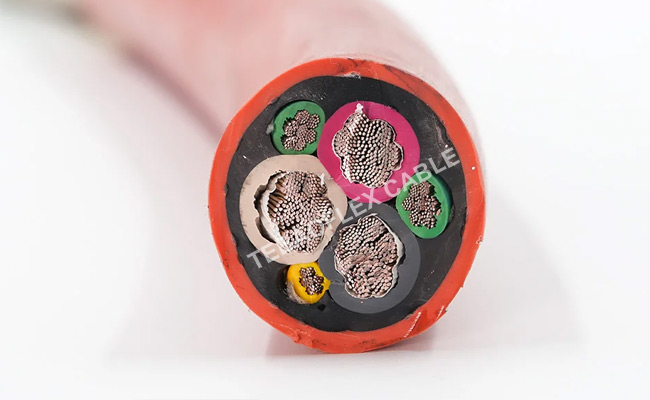

Type G-GC Rubber Mining Cable
Voltage: 2kV
Conductor: Flexible tinned copper
Ground Wire: Uni-directional lay flexible tinned copper with green covering
Ground Check Conductor: Uni-directional lay flexible tinned copper with yellow insulation
Reinforcement: Synthetic yarnover assembly
Insulation: 90°C ethylenepropylene rubber (EPR)
Outer Jacket: JacketMold-cured thermoset with cable identificationvia permanent marking.
Options: Other sizes, colours and custom designs available upon request
Ethylene Propylene Rubber (EPR) insulation available upon request

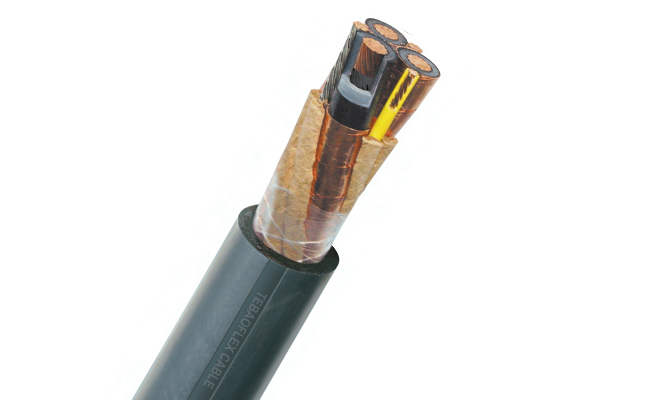

Type MP-GC Power Mining Cable
Voltage: 2kV, 5kV, 8kV
Conductor: Copper Class 2
Ground Wire Conductor: Tinned Copper
Ground Check Conductor: 8 AWG 7-wire copper with yellow polypropylene insulation
Strand Shield: Semi-conducting layer
Insulation: 90°C cross-linked polyethylene(XLPE)
Insulation Shield: Semi-conducting layer under copper tape(phase identification provided)
Assembly: Taped core
Outer Jacket: Polyvinyl chloride (PVC), cable identification via permanent surface marking.
TEBAOFLEX Cable Sample Show
15kV SHD & SHD-GC Mining Cable
| Conductor Size | Conductor Size Nominal Insulation Thickness | Nominal Jacket Thickness | Nominal Overall Diameter | Total Weight approx. | ||||||
| Conductor | Ground | Ground Check | SHD | SHD-GC kg/km |
||||||
| AWG kcmil | Nominal Size | Diameter approx. | SHD | SHD-GC | SHD-GC | |||||
| mm2 | mm | AWG | AWG | AWG | mm | mm | mm | kg/km | mm | |
| 1 | 42,4 | 8,7 | 7 | 5 | 6 | 7,49 | 6,73 | 74,9 | 7.496 | 7.248 |
| 1/0 | 53,5 | 9,4 | 6 | 4 | 6 | 7,49 | 6,73 | 77,5 | 8.229 | 7.94 |
| 2/0 | 67,4 | 10,7 | 5 | 3 | 6 | 7,49 | 7,11 | 81,3 | 9.299 | 8.939 |
| 3/0 | 85,0 | 11,7 | 4 | 2 | 6 | 7,49 | 7,11 | 84,6 | 10.375 | 9.955 |
| 4/0 | 107 | 12,9 | 3 | 1 | 6 | 7,49 | 7,49 | 88,9 | 11.811 | 11.298 |
Our Cables Serve Various Industries
Cable for Surface Mining
Cable for Underground Mining
Cable for Open-cast Mining
Cable used for Coal Mining machine
Cable for Trailing Operate
