The MIL-DTL-24643 Shipboard Cable is part of our extensive line of Mil-Spec Wire & Cable. Unlike the other two Mil-Spec shipboard cables we carry, this cable is designed with a low smoke, zero halogen jacket. This cable is flame-retardant and free of asbestos, mercury, and other potentially toxic materials. If this cable were to come into contact with flame, there would be minimal smoke emissions, making it safe for use in applications where human safety is a concern. The M24643 Shipboard Cable also meets the Navy Shipboard Specification LS. This cable is available in a wide variety of constructions, including watertight and non-watertight, flexing and non-flexing, and armored and unarmored.

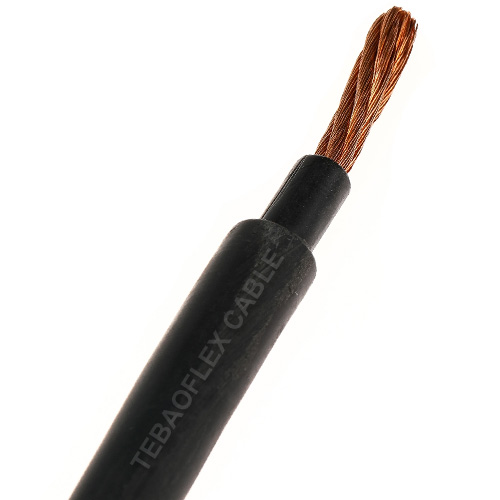

M24643/3 LSSHOF 1 Core Shipbord Cable
Voltage: 600V
Conductor: Coated or uncoated copper
Cores: One Conductor
Insulated: Ethylene Propylene Rubber (EPR)
Cabling: On multi-conductor, Filler may be used as necessary
Jacket: Cross-linked polyolefin XLPO
Temperature: -20°C~90°C

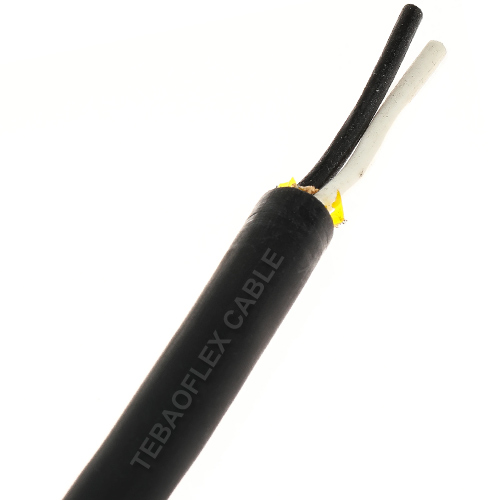

M24643/3 LSDHOF 2 Cores Shipbord Cable
Voltage: 600V
Conductor: Coated or uncoated copper
Cores: Two Conductor
Insulated: Ethylene Propylene Rubber (EPR)
Cabling: On multi-conductor, Filler may be used as necessary
Jacket: Cross-linked polyolefin XLPO
Temperature: -20°C~90°C

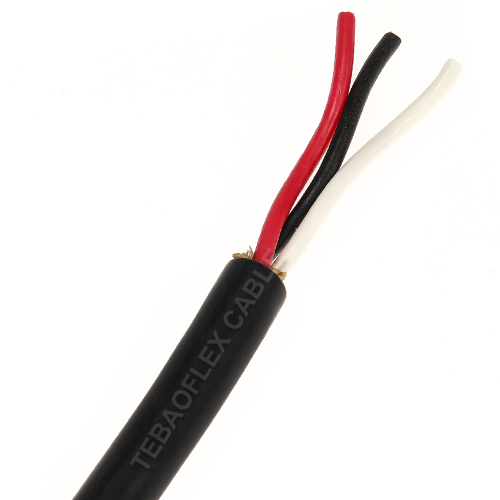

M24643/3 LSTHOF 3 Cores Shipbord Cable
Voltage: 600V
Conductor: Coated or uncoated copper
Cores: Three Conductor
Insulated: Ethylene Propylene Rubber (EPR)
Cabling: On multi-conductor, Filler may be used as necessary
Jacket: Cross-linked polyolefin XLPO
Temperature: -20°C~90°C

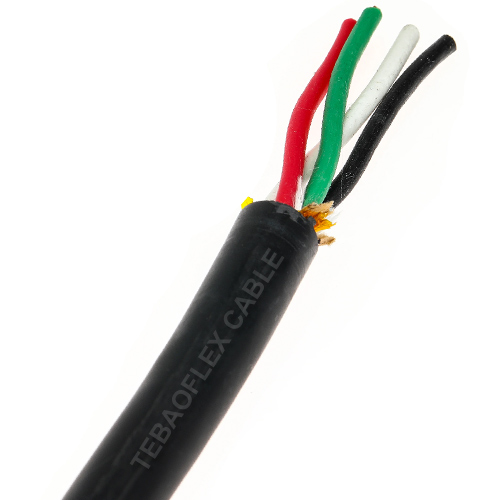

M24643/3 LSFHOF 4 Cores Shipbord Cable
Voltage: 600V
Conductor: Coated or uncoated copper
Cores: Four Conductor
Insulated: Ethylene Propylene Rubber (EPR)
Cabling: On multi-conductor, Filler may be used as necessary
Jacket: Cross-linked polyolefin XLPO
Temperature: -20°C~90°C

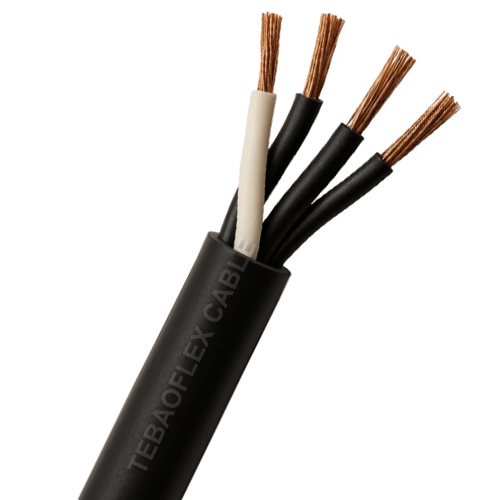

M24643/16 LSTSGU, LSTSGA Shipboard Cable
Voltage: 600V
Conductor: Bare copper
Type: LSTSGU-3, LSTSGU-4, LSTSGU-9, LSTSGU-14, LSTSGU-23, LSTSGU-75, LSTSGU-100, LSTSGU-200, LSTSGU-300
Insulated: Silicone Rubber/Glass Braid/Braid Covering
Jacket: Cross-linked polyolefin XLPO

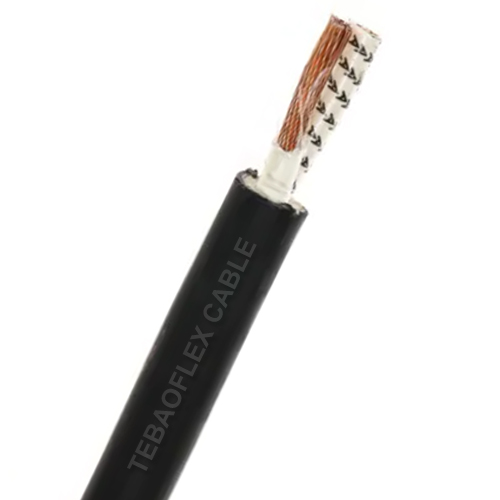

M24643/15 LSDSGU, LSDSGA 2Cores Shipbord Cable
Voltage: 600V
Conductor: two stranded bare copper conductors
Type: LSDSGU, LSDSGA
Insulated: Silicone Rubber/Glass Braid/Braid Covering
Jacket: LSZH XLPO

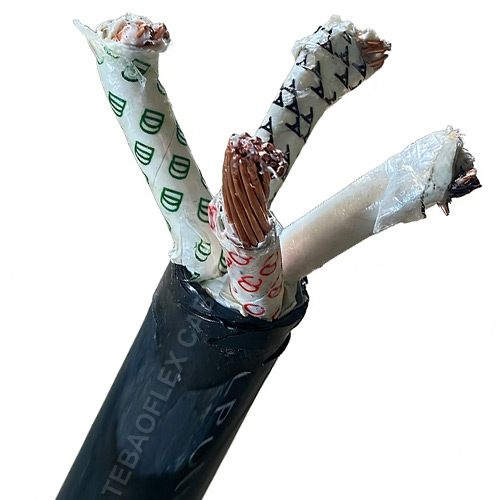

M24643/17 LSFSGU, LSFSGA 4 Cores Shipbord Cable
Voltage: 600V
Conductor: Four stranded bare copper conductors
Type: LSFSGU, LSFSGA
Insulated: Silicone Rubber/Glass Braid/Braid Covering
Jacket: LSZH XLPO
M24643/20 LS7SGU, LS7SGA 7 Cores Shipbord Cable
Voltage: 600V
Conductor: Seven stranded bare copper conductors
Type: LS7SGU, LS7SGA
Insulated: Silicone Rubber/Glass Braid/Braid Covering
Jacket: LSZH XLPO

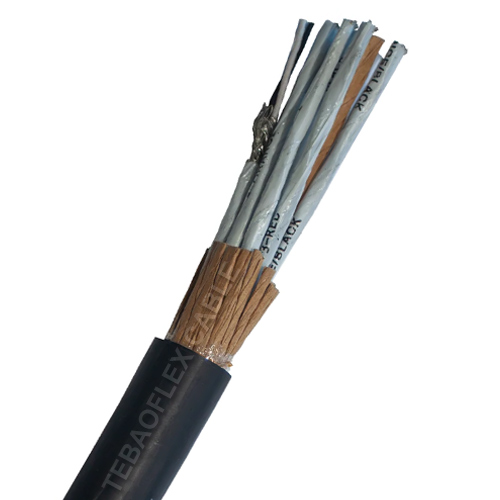

M24643/31 LS2SU, LS2SA, LS2SUS Shipboard Cable
Voltage: 600V
Conductor: features paired stranded bare copper conductors
Insulation: XLPE
Jacket: LSZH- XLPO
Application: This cable is suitable for use in sipboard combat systems, interior communications, lighting.

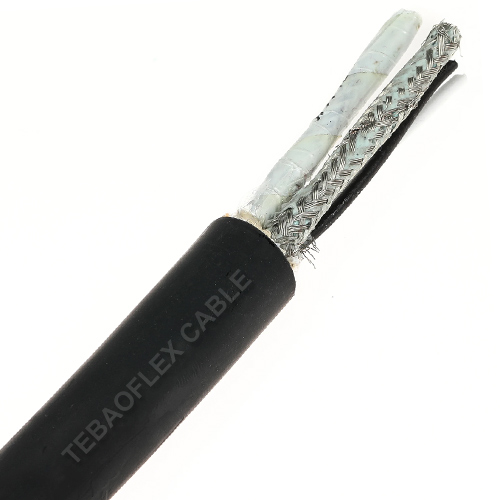

M24643/33 LS2SWU, LS2SWUA Shipboard Cable
Voltage: 600V
Conductor: features paired stranded bare copper conductors
Insulation: XLPE
Jacket: LSZH- XLPO
Application: This cable has individually shielded pairs and an armored option. It for use in shipboardinterior communications, lighting.
0.50mm, 0.6mm, 0.69mm, Mining Blasting Cable
Voltage: 600V
Conductor: features stranded bare copper conductors grouped into triads
Insulation: XLPE
Jacket: LSZH- XLPO
Application: It is suitable for use in shipboard systems, interior communications, and lighting and power applications
Type W, Type SHD-GC, Type MP-GC Mining Cable
Voltage: 600V
Conductor: features stranded bare copper conductors grouped into triads
Insulation: XLPE
Jacket: LSZH- XLPO
Application: the cable is an armored, shielded, and double shielded version of this cable. It is suitable for communications, and lighting and power.
The Marine&Offshore Cables Application Scenarios
Offshore Oil and Gas Platforms
Marine Vessels and Shipbuilding Projects
Offshore Renewable Energy Facilities
Control and Instrumentation Systems
Service and Maintenance Circuits
