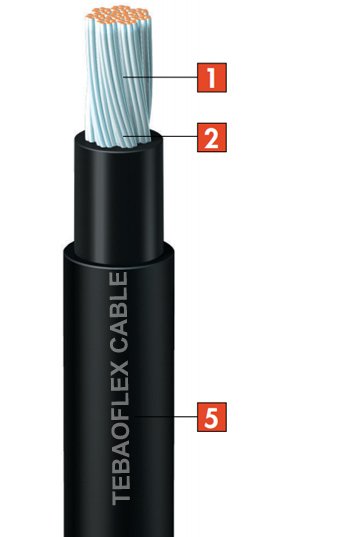

0.6/1kV Flexible PNCT Cable
1. Conductor: Tinned annealed copper wire stranded
2. Insulation: EPR rubber compound(EP)
3. Cabling: if necessary with filler
4. Binder tape: if necessary
5. Sheath: PCP
0.6/1kV PNCT Cable Application: Portable electrical machinery for control and power supplies. Used for low mechanical stresses, general purposes.

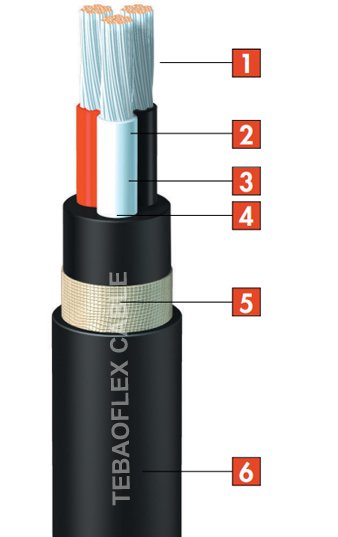

0.6/1kV Flexible PNCT-R Cable
1. Conductor: Tinned annealed copper wire stranded
2. Insulation: EPR rubber compound(EP)
3. Cabling: if necessary with filler
4. Binder tape: if necessary
5. Reinforcing layer
6. Sheath: PCP – with reinforcing layer shall be inserted in the middle of the
0.6/1kV PCNT-R Cable Application: Portable electrical machinery for control and power supplies. Used for low mechanical stresses, general purposes.

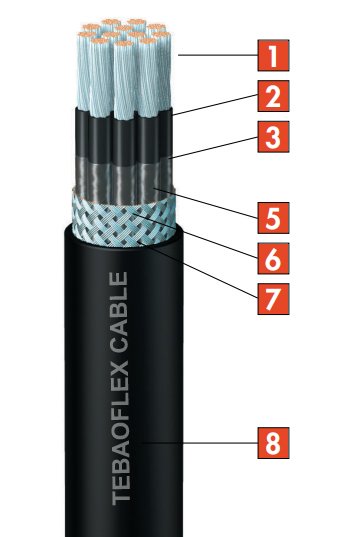

0.6/1kV PNCT-B (-SB, -BS) Festoon Cable
1. Conductor: Tinned annealed copper wire stranded
2. Insulation: EPR rubber compound(EP)
3. Reinforce layer: Yarn braid or tape
4.Dindividual shieldedn,( “-SB”) : Copper wire braid
5. Cabling: if necessary with filler
6. Binder tape: if necessary
7. Collective shield (option, “-BS”) : Copper wire braid
8. Sheath: PCP
0.6/1kV PNCT-B Cable Application: Rubber reeling cable suitable for both control and power supplies. Used for high mechanical stress applications, especiallyfor simultaneous tensile and torsion stresses.

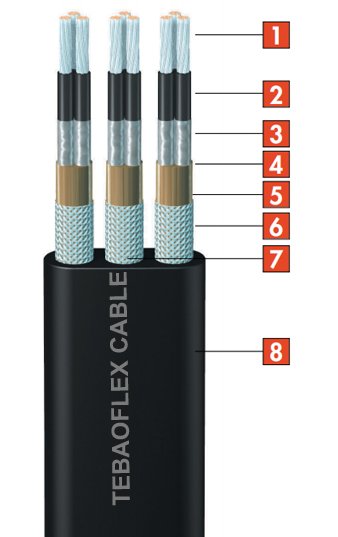

0.6/1kV PNCT-F, FS Festoon Cable
1. Conductor: Tinned annealed copper wire stranded
2. Insulation: EPR rubber compound(EP)
3. Reinforce layer: Yarn braid or tape
4. Unit assembly : if necessary
5. Binder tape: if necessary
6. Collective shield (option, “-FS”) : Copper wire braid
7. Arrangement
8. Sheath: PCP
0.6/1kV PNCT-F Cable Application: Ideal for cranes (festoon cable systems), storage systems, conveyor belts and conveyor systems for power supply and control. Used for medium and high mechanical stress, especially where flexing is forceful and regular in concentrated points.

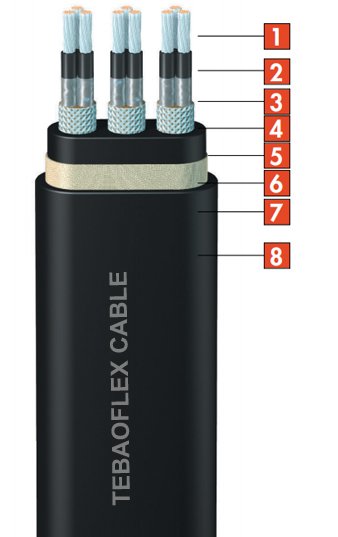

0.6/1kV PNCT-RF, PNCT-RFS Festoon Cable
1. Conductor: Tinned annealed copper wire stranded
2. Insulation: EPR rubber compound(EP)
3. Reinforce layer : Yarn braid or Tape
4.Unit assembly : if necessary
5.Binder tape: if necessary
6.Collective shield (option, “-RFS”) : Copper wire braid
7. Arrangement
8. Sheath: PCP
0.6/1kV PNCT-RF, -RFS Cable Application: Ideal for cranes (festoon cable systems), storage systems, conveyor belts and conveyor systems for power supply and control.Used for medium and high mechanical stress, especially where flexing is forceful and regular in concentrated points.

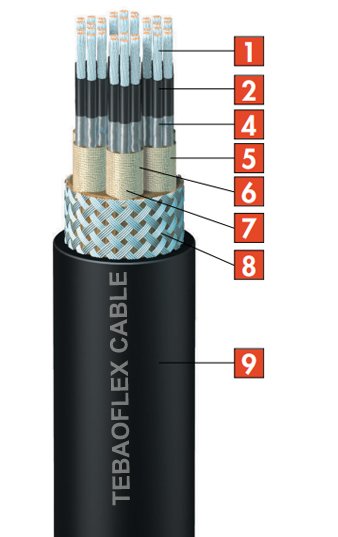

0.6/1kV PNCT-T(-ST, -TS) Festoon Cable
1. Conductor : Tinned annealed copper wire stranded, IEC 60228 Class 5
2. Insulation : EPR rubber compound
3. Individual shield (option, “-ST”) : Copper wire braid
4. Reinforce layer : Yarn braid or Tape
5. Sub-unit : if necessary
6. Cabling : if necessary with filler
7. Binder tape : if necessary
8. Collective shield (option, “-TS”) : Copper wire braid
9. Sheath : PCP
0.6/1kV PNCT-T (-ST, -TS) Cable Application: Rubber reeling cable suitable for both control and power supplies. Used for high mechanical stress applications, especially for simultaneous tensile and torsion stresses collector basket operation.
| Number of Cores | Nominal Sectional Area | Thickness of Insulation | Thickness of Sheath | Overall Diameter(approx.) | Weight(approx.) | Conductor Resistant (20）(max.) | Test Voltage |
| – | mm2 | mm | mm | mm | Kg/km | /km | V/5min |
| 6 | 1 | 1.1 | 3 | 19 | 460 | 20 | 3,500 |
| 1.5 | 1.1 | 3 | 19.9 | 520 | 13.7 | 3,500 | |
| 2.5 | 1.1 | 3.1 | 21.3 | 630 | 8.21 | 3,500 | |
| 4 | 1.1 | 3.3 | 23.5 | 805 | 5.09 | 3,500 | |
| 6 | 1.1 | 3.3 | 25.3 | 1,000 | 3.39 | 3,500 | |
| 7 | 1 | 1.1 | 3 | 20.2 | 500 | 20 | 3,500 |
| 1.5 | 1.1 | 3.1 | 21.4 | 575 | 13.7 | 3,500 | |
| 2.5 | 1.1 | 3.2 | 22.9 | 700 | 8.21 | 3,500 | |
| 4 | 1.1 | 3.3 | 25.1 | 890 | 5.09 | 3,500 | |
| 6 | 1.1 | 3.4 | 27.2 | 1,115 | 3.39 | 3,500 | |
| 8 | 1 | 1.1 | 3.1 | 21.5 | 525 | 20 | 3,500 |
| 1.5 | 1.1 | 3.2 | 22.8 | 605 | 13.7 | 3,500 | |
| 2.5 | 1.1 | 3.3 | 24.5 | 740 | 8.21 | 3,500 | |
| 4 | 1.1 | 3.4 | 26.8 | 945 | 5.09 | 3,500 | |
| 6 | 1.1 | 3.6 | 29.4 | 1,195 | 3.39 | 3,500 | |
| 9 | 1 | 1.1 | 3.2 | 22.9 | 585 | 20 | 3,500 |
| 1.5 | 1.1 | 3.3 | 24.3 | 680 | 13.7 | 3,500 | |
| 2.5 | 1.1 | 3.4 | 26.1 | 830 | 8.21 | 3,500 | |
| 4 | 1.1 | 3.6 | 28.8 | 1,070 | 5.09 | 3,500 | |
| 6 | 1.1 | 3.7 | 31.4 | 1,345 | 3.39 | 3,500 | |
| 10 | 1 | 1.1 | 3.3 | 23.4 | 615 | 20 | 3,500 |
| 1.5 | 1.1 | 3.3 | 24.6 | 700 | 13.7 | 3,500 | |
| 2.5 | 1.1 | 3.4 | 26.4 | 860 | 8.21 | 3,500 | |
| 4 | 1.1 | 3.6 | 29.2 | 1,115 | 5.09 | 3,500 | |
| 6 | 1.1 | 3.7 | 31.8 | 1,410 | 3.39 | 3,500 |
| Nominal Sectional Area | Thickness of Insulation | SPNCT-B | SPNCT-BS | SPNCT-SB | Conductor Resistant (20 ) (max.) |
||||||
| Thickness of Sheath | Overall Diameter (approx.) | Weight (approx.) | Thickness of Sheath | Overall Diameter (approx.) | Weight (approx.) | Thickness of Sheath | Overall Diameter (approx.) | Weight (approx.) | |||
| mm2 | mm | mm | mm | Kg/km | mm | mm | Kg/km | mm | mm | Kg/km | /km |
| 1.5 | 1 | 1.9 | 13.7 | 210 | 2 | 15 | 300 | 2 | 15.4 | 300 | 13.7 |
| 2.5 | 1 | 2 | 15.6 | 285 | 2.2 | 17.5 | 440 | 2.1 | 17.3 | 390 | 8.21 |
| 4 | 1 | 2.1 | 17.3 | 390 | 2.3 | 19.2 | 555 | 2.2 | 19.1 | 520 | 5.09 |
| 6 | 1 | 2.2 | 18.9 | 500 | 2.3 | 20.8 | 680 | 2.3 | 20.8 | 645 | 3.39 |
| 10 | 1 | 2.4 | 21.6 | 710 | 2.5 | 23.5 | 925 | 2.5 | 23.5 | 880 | 1.95 |
| 16 | 1 | 2.6 | 24.9 | 1,020 | 2.7 | 26.8 | 1,265 | 2.7 | 26.8 | 1,215 | 1.24 |
| 25 | 1.2 | 2.9 | 29.9 | 1,530 | 3 | 31.8 | 1,825 | 3 | 31.7 | 1,760 | 0.795 |
| 35 | 1.2 | 3.1 | 34.2 | 2,080 | 3.2 | 36.1 | 2,420 | 3.3 | 36.4 | 2,385 | 0.565 |
| 50 | 1.4 | 3.5 | 39.6 | 2,880 | 3.6 | 42 | 3,375 | 3.6 | 41.9 | 3,245 | 0.393 |
| 70 | 1.4 | 3.7 | 44.6 | 3,835 | 3.9 | 47 | 4,395 | 3.9 | 46.7 | 4,235 | 0.277 |
| 95 | 1.6 | 4.1 | 51.1 | 5,120 | 4.3 | 53.5 | 5,750 | 4.3 | 53.7 | 5,645 | 0.21 |
| 120 | 1.6 | 4.4 | 56 | 6,345 | 4.6 | 58.4 | 7,050 | 4.6 | 58.5 | 6,920 | 0.164 |
| 150 | 1.8 | 4.8 | 62.4 | 7,935 | 4.9 | 64.8 | 8,720 | 4.9 | 64.9 | 8,580 | 0.132 |
| 185 | 2 | 5.1 | 68.4 | 9,580 | 5.3 | 70.8 | 10,440 | 5.3 | 70.9 | 10,285 | 0.108 |
| 240 | 2.2 | 5.6 | 76.9 | 12,300 | 5.8 | 79.3 | 13,270 | 5.8 | 79.6 | 13,180 | 0.0817 |
| 300 | 2.4 | 6.2 | 85.6 | 15,450 | 6.3 | 88 | 16,530 | 6.4 | 89.1 | 16,715 | 0.0654 |
| Nominal Sectional Area | Thickness of Insulation | 2Cores | 3Cores | 4Cores | Conductor Resistant (20 ) | ||||||||
| Thickness of Sheath | Overall Diameter (approx.) | Weight (approx.) | Thickness of Sheath | Overall Diameter (approx.) | Weight (approx.) | Thickness of Sheath | Overall Diameter (approx.) | Weight (approx.) | |||||
| mm2 | mm | mm | mm | Kg/km | mm | mm | Kg/km | mm | mm | Kg/km | (max.)/km | ||
| 1 | 1 | 1.8 | 7.6×16.2 | 185 | 2.1 | 8.2 | 25.4 | 325 | 2.1 | 8.2 | 24 | 315 | 20 |
| 1.5 | 1 | 1.9 | 8.1×17 | 215 | 2.2 | 8.7 | 26.5 | 365 | 2.1 | 8.5 | 25.2 | 355 | 13.7 |
| 2.5 | 1 | 1.9 | 8.5×17.8 | 245 | 2.2 | 9.1 | 27.7 | 415 | 2.2 | 9.1 | 27 | 425 | 8.21 |
| 4 | 1 | 2 | 9.3×19.2 | 305 | 2.3 | 9.9 | 29.7 | 510 | 2.3 | 9.9 | 29.6 | 540 | 5.09 |
| 6 | 1 | 2 | 9.9×20.4 | 370 | 2.4 | 10.7 | 31.7 | 615 | 2.4 | 10.7 | 32.2 | 670 | 3.39 |
| 10 | 1 | 2.1 | 11×22.4 | 490 | 2.5 | 11.8 | 34.6 | 800 | 2.5 | 11.8 | 36 | 905 | 1.95 |
| 16 | 1 | 2.3 | 13×26 | 685 | 2.7 | 13.8 | 39.8 | 1,110 | 2.8 | 14 | 43 | 1,305 | 1.24 |
| 25 | 1.2 | 2.4 | 15×29.8 | 960 | 2.9 | 16 | 45.6 | 1,550 | 3.1 | 16.4 | 50.8 | 1,885 | 0.795 |
| 35 | 1.2 | 2.6 | 16.732.8 | 1,245 | 3.1 | 17.7 | 49.9 | 1,990 | 3.3 | 18.1 | 56.4 | 2,450 | 0.565 |
| 50 | 1.4 | 2.8 | 19.2×37.4 | 1,685 | 3.4 | 20.4 | 56.8 | 2,690 | 3.7 | 21 | 65.6 | 3,385 | 0.393 |
| 70 | 1.4 | 3 | 21.5×41.6 | 2,220 | 3.6 | 22.7 | 62.9 | 3,510 | 4 | 23.5 | 73.8 | 4,485 | 0.277 |
| 95 | 1.6 | 3.2 | 24×46.2 | 2,810 | 3.9 | 25.4 | 69.8 | 4,445 | 4.3 | 26.2 | 82.8 | 5,710 | 0.21 |
| 120 | 1.6 | 3.4 | 26.2×50.2 | 3,450 | 4.2 | 27.8 | 75.8 | 5,460 | 4.6 | 28.6 | 90.6 | 7,045 | 0.164 |
| 150 | 1.8 | 3.6 | 28.9×55.2 | 4,240 | 4.5 | 30.7 | 83.3 | 6,710 | 5 | 31.7 | 100.6 | 8,725 | 0.132 |
| 185 | 2 | 3.8 | 31.5×60 | 5,085 | 4.8 | 33.5 | 90.5 | 8,045 | 5.4 | 34.7 | 110.2 | 10,530 | 0.108 |
| 240 | 2.2 | 4.1 | 35.3×67 | 6,535 | 5.2 | 37.5 | 100.9 | 10,310 | 5.9 | 38.9 | 124 | 13,580 | 0.0817 |
| 300 | 2.4 | 4.4 | 38.9×73.6 | 8,030 | 5.6 | 41.3 | 110.7 | 12,650 | 6.4 | 42.9 | 137 | 16,745 | 0.0654 |
| 400 | – | – | – | – | – | – | – | – | – | – | – | ||
