NGFLGOU-J & NGFLCGOU-J Flat Rubber Cable Application

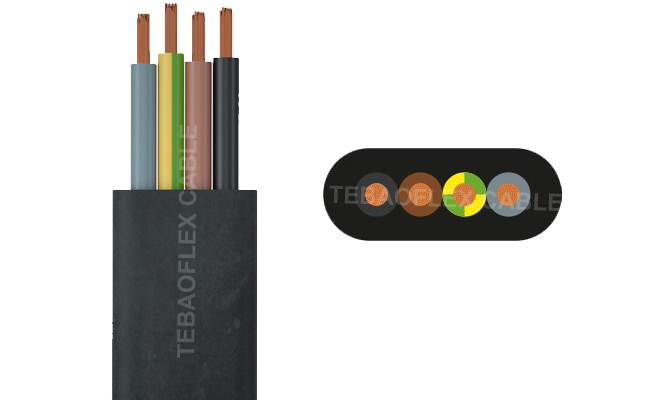

NGFLGOU-J Flat Unscreen Flexible Rubber Cable
The NGFLGOU flat flexible rubber cable is designed for mobile power supply and control applications in overhead cranes, gantry cranes, elevators, floor conveyor systems, machine tools and industrial material-handling equipment. Its flat construction provides excellent flexibility, a compact installation profile and a small bending radius, making it suitable for continuous movement in festoon cable systems.

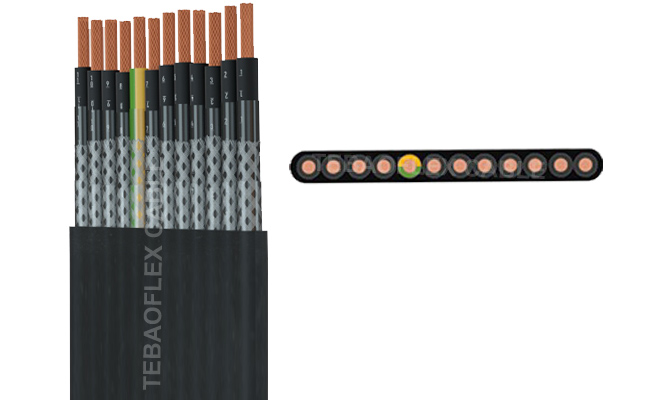

NGFLCGOU-J Flat Screened Flexible Rubber Cable
The NGFLCGOU flat screened flexible rubber cable is designed for mobile power and control applications in cranes, elevators, conveyor systems and industrial automation equipment. Its flat construction supports space-saving installation and repeated bending, while its tinned copper wire braid screen helps reduce electromagnetic interference in applications requiring enhanced EMC protection.
NGFLGÖU-J (NGFLGOU-J) Unscreened Rubber Cable

Voltage: 300/500V(600V)
Conductor: Class 6 extra fine stranded Copper
Insulation: EPR (Ethylene Propylene Rubber)
Screen: Non
Outer Sheath: CP Rubber (Chloroprene)
Core Identification:
4 cores: Green/Yellow, Brown, Black , Grey
5 cores: Green/Yellow, Blue, Brown, Black, Grey
7 cores and over: Black with white numbers,Green/Yellow
NGFLCGÖU-J (NGFLCGOU-J) Screen Flat Rubber Cable

Voltage: 300/500V(600V)
Conductor: to 25mm2: Class 6 extra fine stranded Copper
over 25mm2: Class 5 flexible stranded Copper
Insulation: EPR (Ethylene Propylene Rubber)
Screen: TCWB(Tinned copper wire braided)
Outer Sheath: CP Rubber (Chloroprene)
Core Identification:
4 cores: Green/Yellow, Brown, Black , Grey
5 cores: Green/Yellow, Blue, Brown, Black, Grey
7 cores and over: Black with white numbers,Green/Yellow
| Construction | No. of Strands | Nominal Insulation Thickness | Nominal Overall Diameter Height×Width | Nominal Weight | Ampacity | |||
| No. of cores×AWG/kcmil | – | inch | mm | inch | mm | lbs/kft | kg/km | A |
| 4×6 | 133 | 0.06 | 1.5 | 0.67×1.69 | 17.0×42.9 | 895 | 1332 | 72 |
| 4×4 | 259 | 0.06 | 1.5 | 0.75×1.89 | 19.0×48.0 | 1185 | 1764 | 93 |
| 4×2 | 259 | 0.06 | 1.5 | 0.84×2.23 | 20.6×56.6 | 1620 | 2411 | 122 |
| 4×1 | 259 | 0.08 | 2 | 0.97×2.60 | 24.6×66.0 | 2100 | 3125 | 143 |
| 4×1/0 | 259 | 0.08 | 2 | 1.01×2.73 | 25.7×69.3 | 2500 | 3721 | 165 |
| 4×2/0 | 329 | 0.08 | 2 | 1.10×2.96 | 27.9×75.2 | 2900 | 4316 | 192 |
| 4×3/0 | 413 | 0.08 | 2 | 1.18×3.25 | 30.0×82.6 | 3500 | 5209 | 221 |
| 4×4/0 | 532 | 0.08 | 2 | 1.29×3.46 | 32.8×87.9 | 4225 | 6288 | 255 |
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT | |
| mm | ||||
| mm2 | Minimum | Maximum | kg/km | |
| 4 | 1.5 | 6.2 x 17.8 | 7.2 x 20.4 | 220 |
| 4 | 2.5 | 7.2 x 21.6 | 8.3 x 24.8 | 320 |
| 4 | 4 | 10.1 x 27.8 | 11.6 x 31.9 | 505 |
| 4 | 6 | 10.1 x 29.8 | 11.6 x 34.1 | 605 |
| 4 | 10 | 11.0 x 34.6 | 12.7 x 39.6 | 840 |
| 4 | 16 | 13.0 x 39.8 | 14.9 x 45.7 | 1180 |
| 4 | 25 | 14.4 x 45.1 | 16.5 x 51.7 | 1605 |
| 4 | 35 | 16.3 x 52.8 | 18.7 x 60.5 | 2520 |
| 4 | 50 | 19.1 x 61.8 | 21.7 x 66.0 | 2860 |
| 4 | 70 | 20.8 x 71.8 | 24.75 x 75.8 | 4790 |
| 4 | 95 | 23.25 x 80.2 | 27.25 x 84.0 | 5950 |
| 4 | 120 | 28.05 x 91.8 | 31.05 x 96.8 | 7750 |
| 5 | 1.5 | 5.95 x 26.55 | 7.95 x 28.55 | 440 |
| 5 | 2.5 | 7.25 x 30.65 | 9.25 x 32.65 | 590 |
| 5 | 4 | 8.55 x 34.75 | 10.55 x 36.75 | 770 |
| 5 | 6 | 9.15 x 37.75 | 11.15 x 39.75 | 920 |
| 5 | 10 | 10.65 x 45.25 | 12.65 x 47.25 | 1290 |
| 5 | 25 | 14.85 x 61.45 | 16.85 x 63.45 | 2490 |
| 7 | 1.5 | 5.95 x 34.85 | 7.95 x 36.85 | 570 |
| 7 | 2.5 | 7.25 x 40.35 | 9.25 x 42.35 | 790 |
| 7 | 4 | 8.55 x 45.85 | 10.55 x 47.85 | 1010 |
| 7 | 6 | 9.15 x 50.05 | 11.15 x 52.05 | 1220 |
| 7 | 10 | 10.0 x 57.6 | 12.0 x 59.6 | 1550 |
| 7 | 25 | 15.0 x 82.8 | 17.0 x 84.8 | 3350 |
| 7 | 35 | 16.3 x 94.8 | 18.7 x 99.8 | 4500 |
| 8 | 1.5 | 7.2 x 34.6 | 8.3 x 39.6 | 470 |
| 8 | 2.5 | 7.25 x 43.2 | 9.25 x 45.2 | 830 |
| 10 | 1.5 | 7.55 x 47.9 | 8.55 x 49.9 | 810 |
| 12 | 1.5 | 8.1 x 52.0 | 8.0 x 54.0 | 796 |
| 12 | 2.5 | 7.75 x 65.1 | 9.6 x 69.0 | 1020 |
| 24 | 1.5 | 8.15 x 112.6 | 9.15 x 114.6 | 1930 |
| 24 | 2.5 | 9.05 x 130.6 | 11.05 x 132.6 | 2760 |
