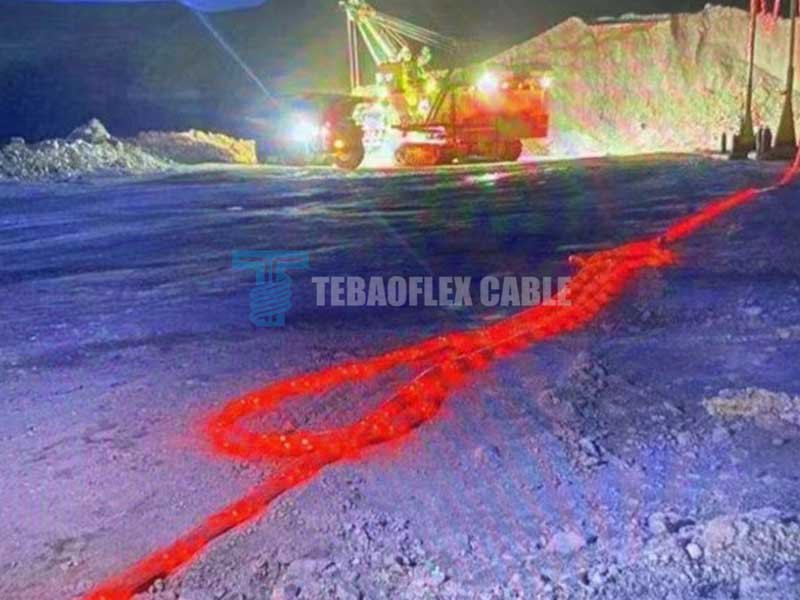

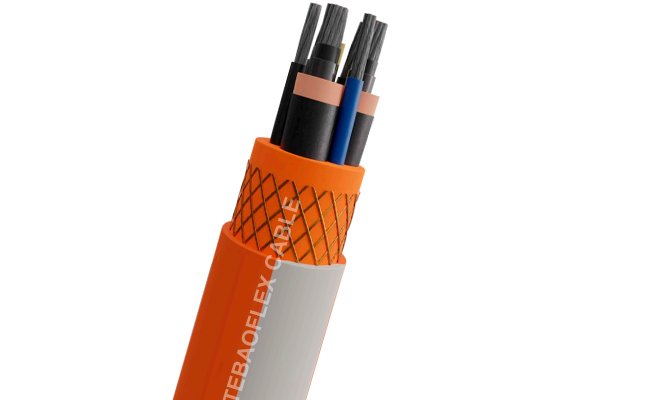

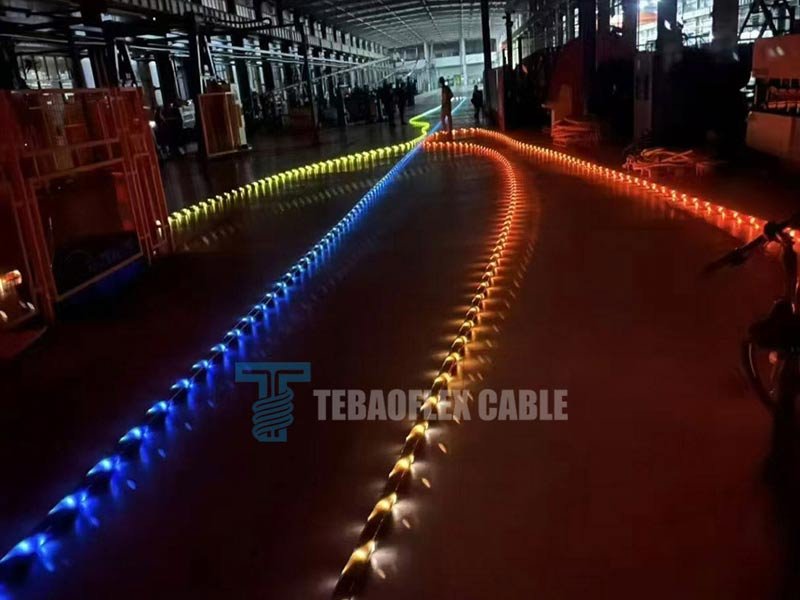

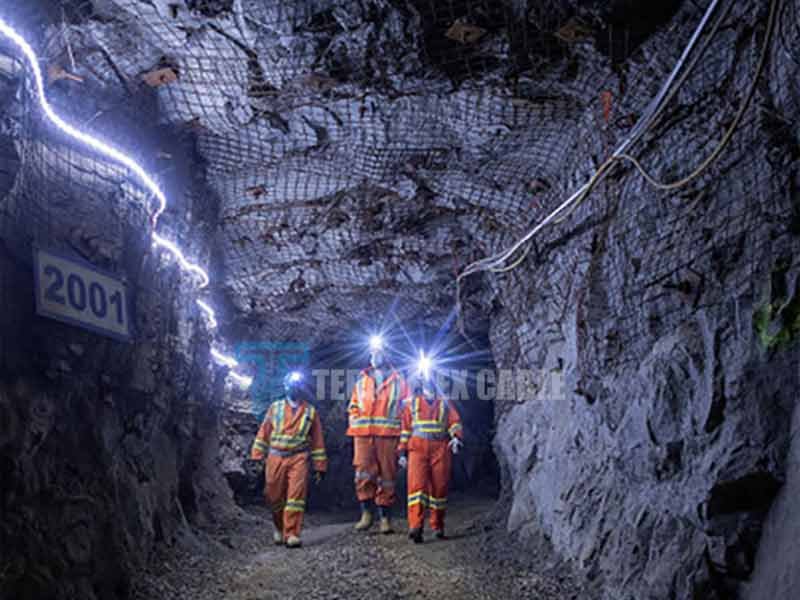

TEBAOFLEX Reflective & fluorescent mining cable is intended as trailing cable for the power supply to large mobile equipment in mines, such as shovels and draglines. Especially intended for application where, to guarantee the safety of personnel and equipment, the cable must be visible in the dark.

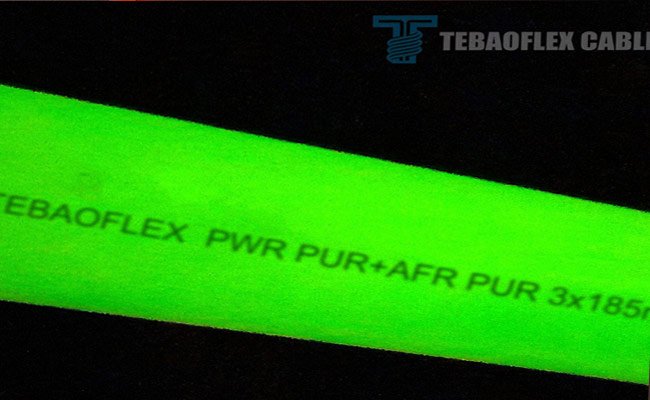

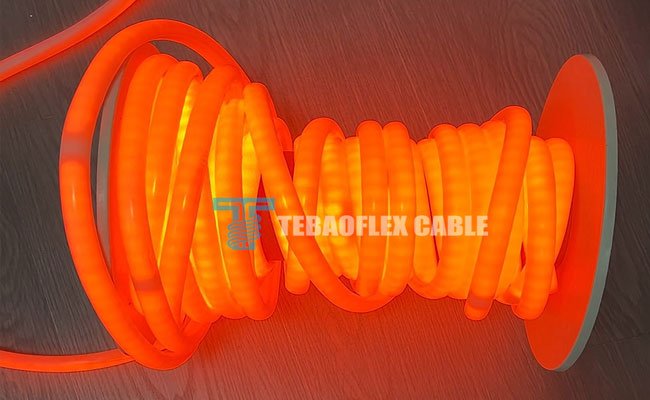

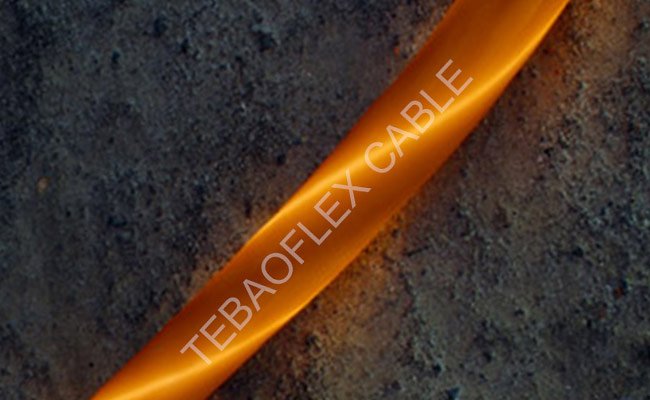

The transparent polyurethane outer sheath, combined with the use of active illuminating element, allows the cable illu- mination also when not energized. The extremely robust sheath has excellent resistance against impact, abrasion and tearing, and also suitable for fully flexible operation down to -50 °C.

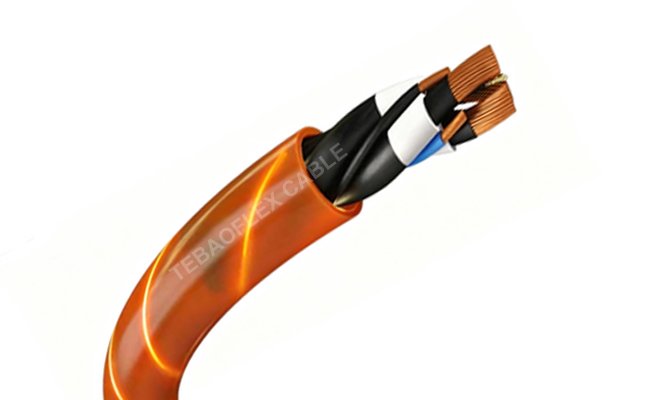

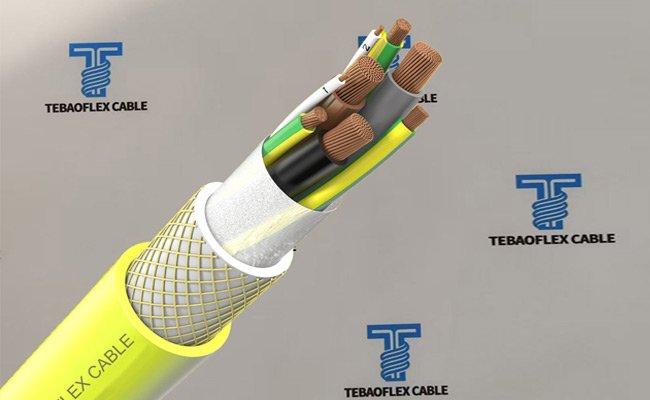

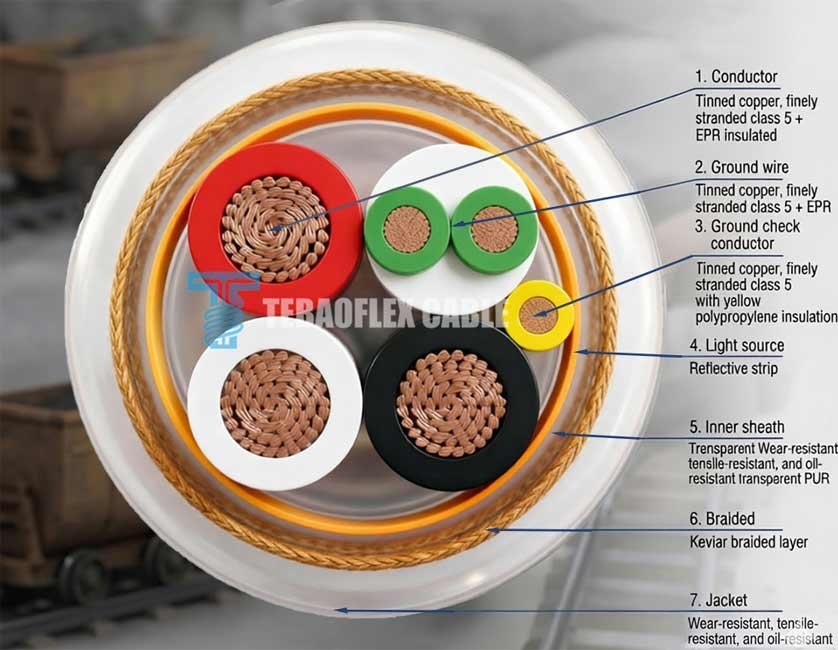

The Cable Structure:
1.Conductor: Tinned copper, finely stranded class 5+EPR insulated
2.Ground wire: Tinned copper, finely stranded class 5+EPR insulated
3.Ground check conductor: Tinned copper, finely stranded class 5 with yellow polypropylene insulation
4.Light source: Reflective strip
5.Inner sheath: Wear-resistant, tensile-resistant, and oil-resistant transparent PUR
6.Braided: Kevlar braided layer
7.Jacket: Wear-resistant, tensile-resistant, and oil-resistant transparent PUR
VDE 0250 3.6~10kV TENAX-LUMEN (N)TSCGEH3S Self-Luminous LED light strip Trailing Mining cable

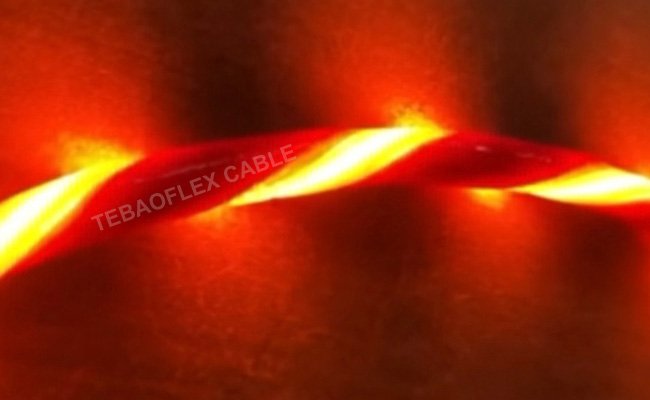

IEC 60227 0.6~6kV TEBAOFLEX-MTO-RF-VB&M Reflective + Fluorescent LED light trip Mining Cable
EN 50525 H-FLEX PWR AFR PUR+LUM Reinforced Retroreflective LED Light Umbilical Mining Power Cable

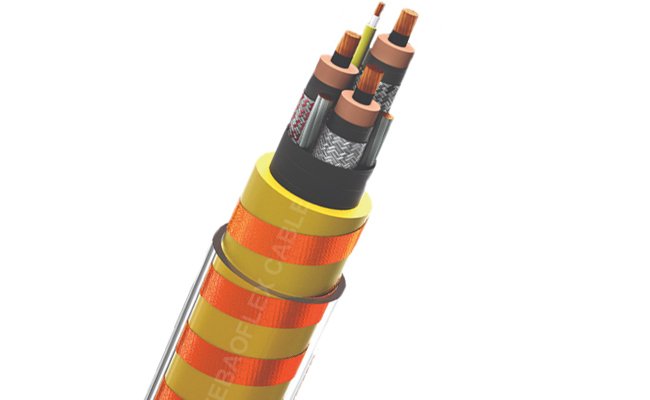

ICEA Type SHD-GC 2/0 AWG Transparent orange/silver reflective tape under TPU Jacket Mining Cable
SANS 1520-1 640/1100VTRACKLESS SCOOP Glowing Reflective Mining Flexible Cable
SANS 1520-1 640/1100V Type 61A illuminated Glowing Trailing Flexible Mining Cable

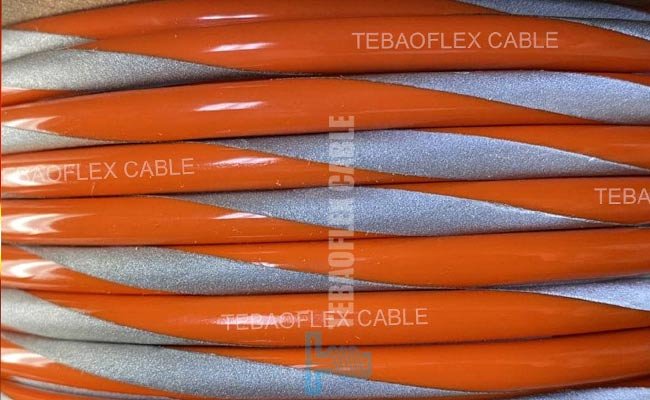

SANS 1520-2 3.8/6.6kV TYPE 66 &TYPE 66 ECC Flexible Glowing Reflective TPU Mining Cable
SANS 1520-2 35/611kVTYPE 611 &TYPE 11 ECC Flexible Glowing Reflectiv TPU Mining Cable
According to Customer’s require customize Retroreflective Trailing Mining Cable
| Number of cores x cross section |
Conductor diameter max . mm |
Outer diameter mm |
Weight (approx.) kg/km |
Permissible tensile force max . N |
Conductor resistance at 20°C |
Inductance nom. |
Current carrying capacity * A |
Short circuit current (conductor) kA |
|
| min. | max . | max . Ω/km | mH/km | ||||||
| 3×35+2×16+16 | 7.5 | 46.2 | 49.7 | 3 200 | 2 625 | 0.565 | 0.34 | 162 | 5.01 |
| 3×50+2×16+16 | 9 | 49.3 | 53.8 | 3 800 | 3 750 | 0.393 | 0.32 | 202 | 7.15 |
| 3×70+2×25+16 | 10.6 | 54.6 | 59.1 | 4 900 | 5 250 | 0.277 | 0.3 | 250 | 10.01 |
| 3×95+2×25+16 | 12.6 | 58.9 | 63.4 | 5 750 | 7 125 | 0.21 | 0.29 | 301 | 13.59 |
| 3×120+2×35+16 | 14.8 | 65.5 | 70 | 7 250 | 9 000 | 0.164 | 0.28 | 352 | 17.16 |
| 3×150+2×35+16 | 16 | 68.8 | 72.4 | 8 350 | 11 250 | 0.132 | 0.27 | 404 | 21.45 |
| 3×185+2×50+16 | 17.7 | 71.7 | 76.2 | 9 850 | 13 875 | 0.108 | 0.27 | 461 | 26.46 |
| 3×240+2×70+16 | 20.3 | 79.1 | 83.6 | 12 500 | 18 000 | 0.0817 | 0.26 | 540 | 34.32 |
| Number of cores x cross section |
Conductor diameter max . mm |
Outer diameter mm |
Weight (approx.) kg/km |
Permissible tensile force max . N |
Conductor resistance at 20°C |
Inductance nom. |
Current carrying capacity * A |
Short circuit current (conductor) kA |
|
| min. | max . | max . Ω/km | mH/km | ||||||
| 3×35+2×16+16 | 7.5 | 51 | 55.5 | 3 465 | 2 625 | 0.565 | 0.35 | 162 | 5.01 |
| 3×50+2×16+16 | 9 | 52 | 56 | 4 280 | 3 750 | 0.393 | 0.33 | 202 | 7.15 |
| 3×70+2×25+16 | 10.6 | 56.3 | 60.8 | 5 360 | 5 250 | 0.277 | 0.31 | 250 | 10.01 |
| 3×95+2×25+16 | 12.6 | 60.6 | 65.1 | 6 495 | 7 125 | 0.21 | 0.3 | 301 | 13.59 |
| 3×120+2×35+16 | 14.8 | 67.2 | 71.7 | 7 660 | 9 000 | 0.164 | 0.29 | 352 | 17.16 |
| 3×150+2×35+16 | 16 | 69.6 | 74.1 | 8 685 | 11 250 | 0.132 | 0.28 | 404 | 21.45 |
| 3×185+2×50+16 | 17.7 | 73.4 | 77.9 | 10 460 | 13 875 | 0.108 | 0.27 | 461 | 26.46 |
| 3×240+2×70+16 | 20.3 | 80.8 | 85.3 | 12 890 | 18 000 | 0.0817 | 0.26 | 540 | 34.32 |
| Part number | Main conductors | PE conductors | Pilot conductors | Nominal outer Ø (mm) | Weight kg/km |
| TEBAOFLEX2603 | 3 x 25 mm² | 3 x 6 mm² | 2 x 1.0 mm² | 25.8 | 1150 |
| TEBAOFLEX2604 | 3 x 35 mm² | 3 x 6 mm² | 2 x 1.5 mm² | 27.1 | 1440 |
| TEBAOFLEX2605 | 3 x 50 mm² | 3 x 10 mm² | 2 x 1.5 mm² | 31.1 | 2030 |
| TEBAOFLEX2606 | 3 x 70 mm² | 3 x 16 mm² | 2 x 1.5 mm² | 35.6 | 2830 |
| TEBAOFLEX2607 | 3 x 95 mm² | 3 x 16 mm² | 2 x 1.5 mm² | 38.3 | 3500 |
| TEBAOFLEX2608 | 3 x 120 mm² | 3 x 25 mm² | 2 x 1.5 mm² | 43.8 | 4550 |
| TEBAOFLEX2609 | 3 x 150 mm² | 3 x 25 mm² | 2 x 1.5 mm² | 48.6 | 5510 |
| TEBAOFLEX210 | 3 x 185 mm² | 3 x 35 mm² | 2 x 1.5 mm² | 51.9 | 6720 |
| TEBAOFLEX211 | 3 x 240 mm² | 3 x 50 mm² | 2 x 1.5 mm² | 58.6 | 8960 |
