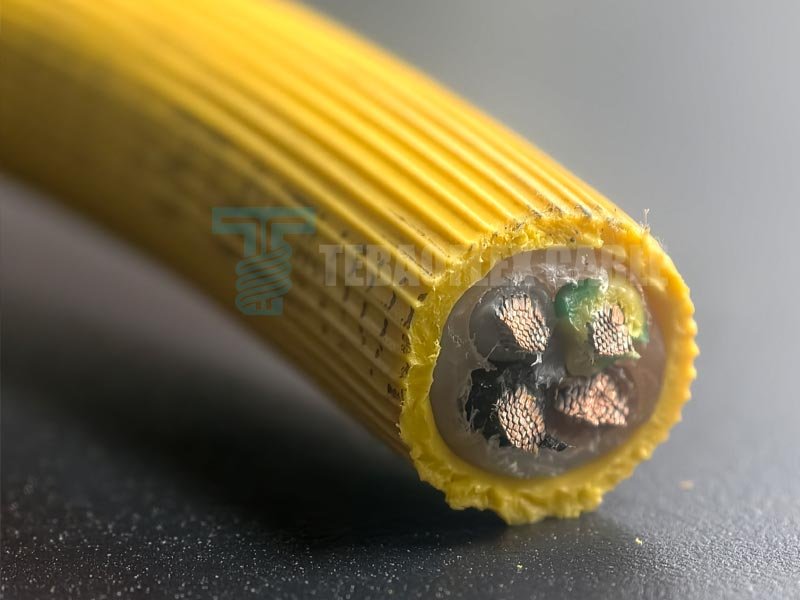

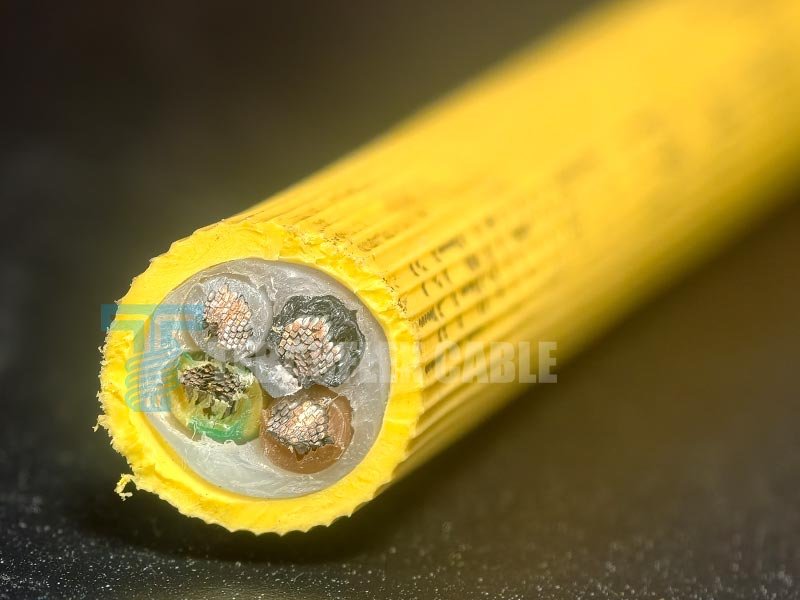

TEBAOFLEX Reefer Container Cable is used by companies and reefer manufacturers all over the world and over the past 10+ years has proven to be one of the strongest and best cables on the marke.
Can’t find what you are looking for? Please E-mail: info@tebaoflexcable.com
Voltage: 450/750V, 0.6/1kV

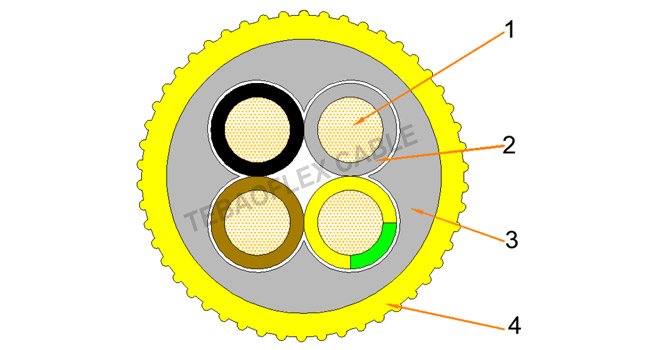

1. Conductor…..Tinned flexible copper conductor
2. Insulation….. XLPE or EPDM-Rubber
3. Filler.….Extruded TPO compound (LSZH)
4. Sheath ….. Yellow or black polyurethane (PUR) Groove Sheath
Operating Temperature Rating: -40ºC to +90ºC
Color marking of cores
3-cores: green/yellow, blue, brown
4-cores: green/yellow, brown, black, grey
5-cores: green/yellow, blue, brown, black, grey

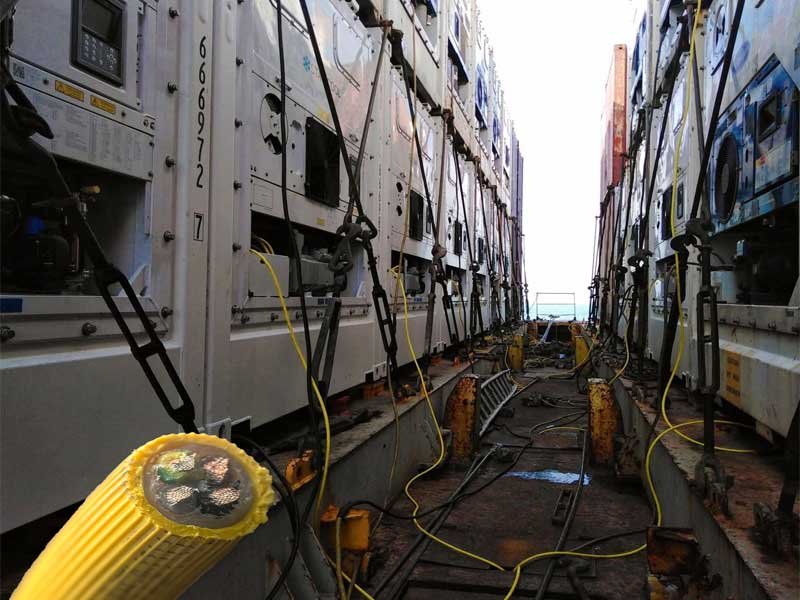

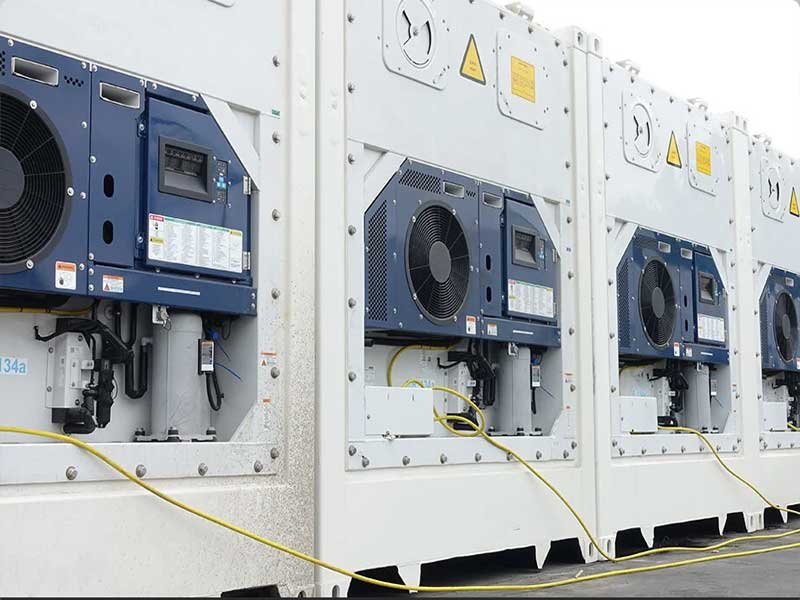

The QWPK PUR Cable Application
QWPK pur cable is the new generation operating cable. It is developed to meet user requirements for mechanical protection, flexibility and abrasion. Along with QWPK are UV, ozone, oil and chemical resistance will use the area very wide. QWPK is very suitable as a connection cable for machinery and equipment used hard and diligently, for example, on construction sites and mines, where the environment varies, and the cable is exposed to continuous stress.
QWPK Container Flex PUR Cable Parameter
| Conductors and screen area | Outer Sheath | Diameter over sheath | Cable weight | Standard delivery length |
| [mm2] | Color | [mm] | [kg/km] | [m] |
| 3G1,5 | Yellow | 9,1 | 124 | 100 |
| 3G1,5 | Yellow | 9,1 | 124 | 500 |
| 3G2,5 | Yellow | 10,7 | 180 | 500 |
| 4G1,5 | Yellow | 10,1 | 153 | 500 |
| 4G2,5 | Yellow | 11,9 | 222 | 500 |
| 4G4 | Yellow | 13,8 | 321 | 500 |
| 5G1,5 | Yellow | 11,0 | 185 | 500 |
| 5G2,5 | Yellow | 13,2 | 271 | 500 |
| 5G6 | Yellow | 17,2 | 519 | 500 |
| 5G10 | Yellow | 22,7 | 900 | 500 |
| 5G16 | Yellow | 28,8 | 1324 | 500 |
QWPK PUR Cable Application
