• Voltage Rating: 640/1100V
  • Types: For reeling and non reeling applications.
  • Conductor: Flexible tinned/plain soft copper – class 5
  • Insulation: EPM extruded cores – SANS 1411-3 RD3
  • Sheath: CM (black or yellow) mid sheathed reinforced EHD RS6

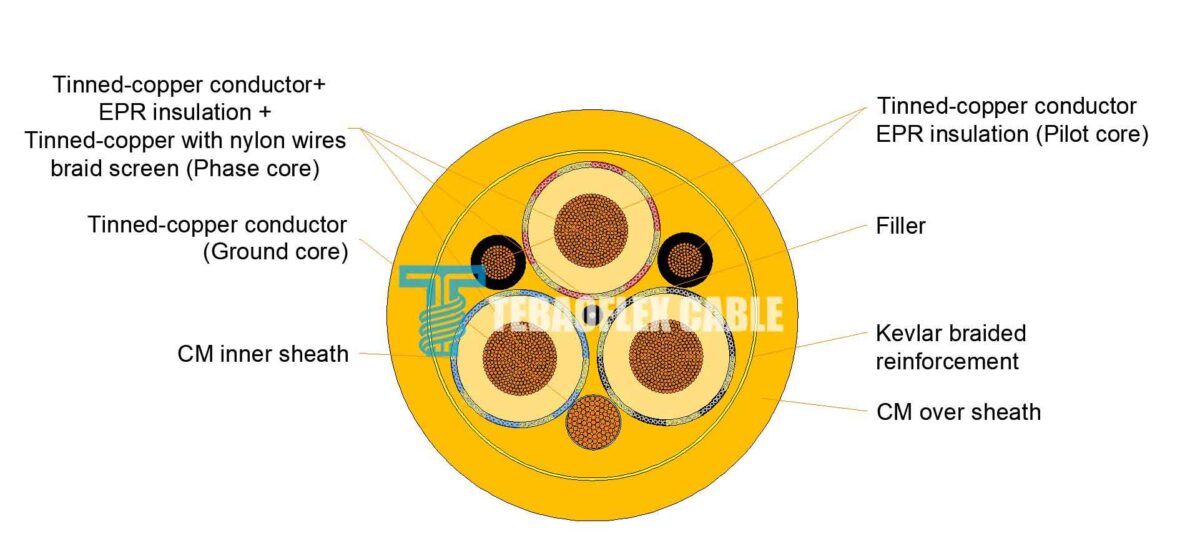

  • 6 Cores:  individually screened phase cores plus 1 or 2 unscreened pilot cores plus 1 or 2 Earth continuity conductors laid up around an elastometric dummy center.
    Application: Suitable for reeling, mobile equipment and pump applications.

Applications of Trackless Scoop Mining Type 61 Cables

1. Power supply for mobile equipment in underground and open-pit mines.
2. Suitable for excavators, loaders, belt conveyors, tunnel boring machines and mobile transformers.
3. Designed for reel winding & unwinding, frequent flexing, damp and muddy mining environments.
4. Widely used in mining projects in Australia, New Zealand and South America.

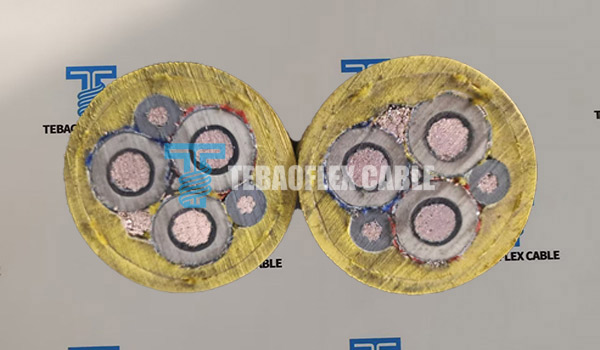

Trackless Scoop Mining Type 61 cable

Trackless Scoop Mining Type 61 Cables Product Features
  • Flexible tinned copper conductor for excellent bending resistance and fatigue resistance.
  • EPR insulation with high temperature resistance, aging resistance and mud resistance.
  • Heavy-duty rubber jacket with outstanding abrasion, tear, oil and chemical resistance.
  • Equipped with ground check conductor for mining earth fault monitoring.
  • Flame retardant, low smoke and impact resistant, compliant with AS/NZS mining standards.
  • Robust structure, ideal for long-distance mobile laying and continuous reel operation in harsh mining conditions.

Trackless Scoop Mining Type 61 Cables Technical Data

POWER CORES
Conductor size mm2 2.5 16 25 35 50 70
Maximum wire diameter mm2 0.26 0.41 0.41 0.41 0.41 0.51
Approximate conductor diameter mm 2.1 5.2 6.7 8.4 10.3 11.7
Maximum screen wire diameter mm 0.21 0.31 0.31 0.31 0.31 0.31
Braided screen filling factor % 80 80 80 80 80 80
PILOT CORES
Number of pilot cores – 2 2 2 1 2
Conductor size mm2 – 4 6 6 10 10
Maximum wire diameter mm – 0.31 0.31 0.31 0.41 0.41
Approximate conductor diameter mm – 2.7 3.2 3.2 4.2 4.2
EARTH CORES
Number of earth cores 1 1 1 1 2 1
Conductor size mm2 1.5 10 16 16 10 16
Maximum wire diameter mm 0.26 0.41 0.41 0.41 0.25 0.41
Approximate conductor diameter mm 1.6 4.2 5.2 5.2 4.2 5.2
CABLE DIAMETER
Approximate lower limit mm 15.9 32 36.4 37.8 45.1 50.1
Approximate upper limit mm 16.4 35 37.2 38.6 46.2 54.0
Cable Mass (approximate) kg/m 0.41 2 2.5 2.96 3.8 5.2
Minimum bending radius mm 98 190 240 260 290 320
Max. recommended tension kN 0.12 0.79 1.24 1.73 2.5 3.2
POWER CORES ELECTRICAL DATA
Max. conductor dc resistance Ώ/km 8.54 1.34 0.859 0.610 0.424 0.299
