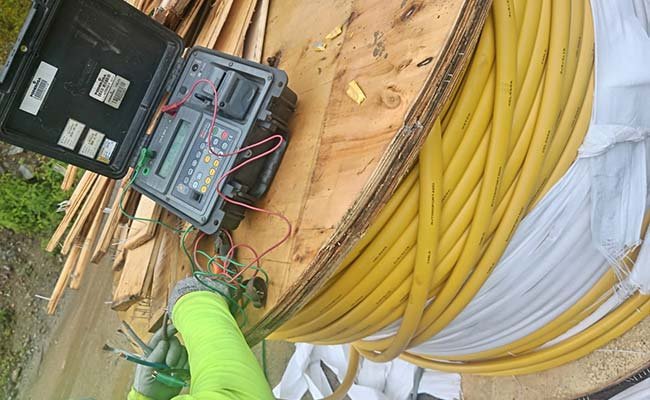

Application of CABLE AUTOSOPORTADO PARA ELEVADORES 3×8+3×16 AWG
TEBAOFLEX CABLE For mine elevators.The PVC outer cover provides excellent abrasion resistance.In the event of a fire, the cable’s outer sheath is non-flammable and self-extinguishing, exceeding the IEC 60332-1-2 standard: pre-mixed flame of 1 kW.The cable’s outer sheath is UV-resistant, exceeding ASTM G-155 standards.

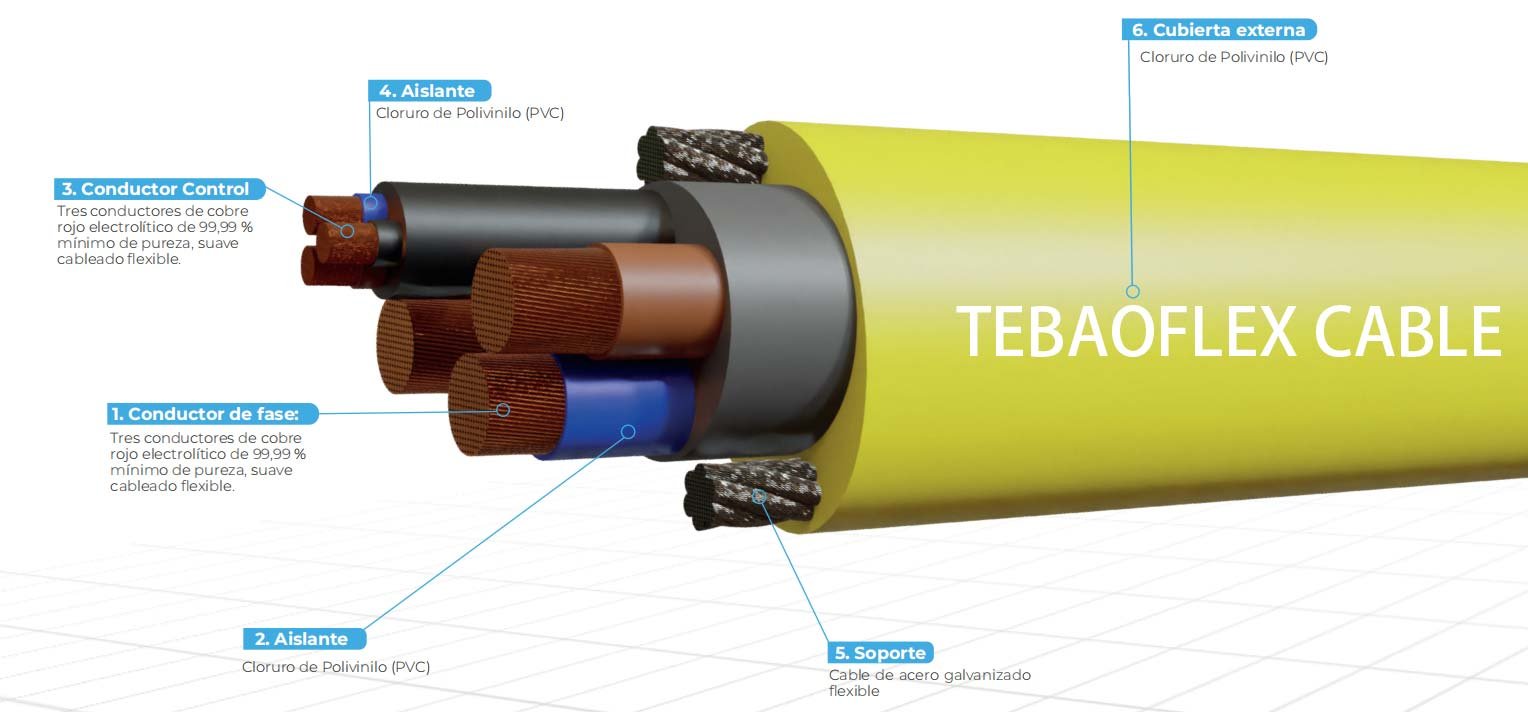

CABLE AUTOSOPORTADO PARA ELEVADORES 3×8+3×16 AWG Construction
| Phase conductor: | Three conductors of 8 AWG, made of electrolytic copper with a minimum purity of
99.99%, flexible K-class wiring. |
| Phase Insulator:： | Polyvinyl Chloride (PVC) in black, blue, and brown. |
| Conductor control:： | Three conductors of 16 AWG electrolytic copper with a minimum purity of 99.99%, flexible K-class wiring. |
| Control insulation: | Polyvinyl chloride (PVC) in black, blue, and brown. |
| Control Meeting: | Three insulated conductors of 16 AWG |
| Total Meeting: | 3 insulated phase conductors of 8 AWG plus the previously formed set. |
| Inner cover: | Extruded layer with polyvinyl chloride (PVC) |

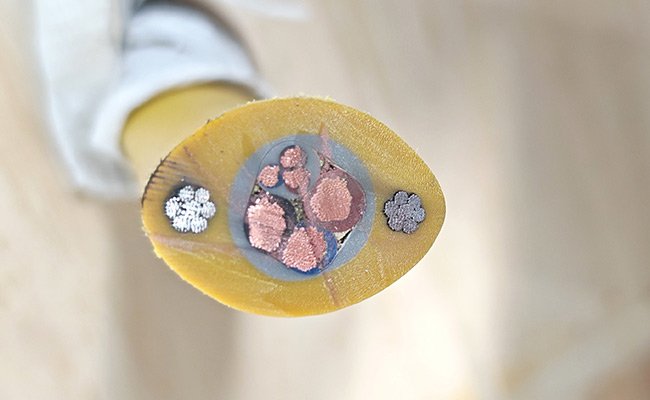

| Exterior Cover: | Diamond-shaped extruded layer with polyvinyl chloride (PVC) flame-retardant, abrasion-resistant, and UV-resistant. Includes 2 flexible galvanized steel cables arranged parallel on the sides. |
| Color: | Yellow exterior cover |
CABLE AUTOSOPORTADO PARA ELEVADORES 3×8+3×16 AWG Technical data
| Brand: | TEBAOFLEX CABLE |
| Type designation: | 0.6/1 (1.2) kV Self-supporting cable for elevators, 3×8+3×16 AWG |
| Standard: | IEC 60228:IEC 60502-1 2010:IEC 60332-1-2:UL 2556:ICEA S-95-658:
NTP-IEC 60228-2010:NTP-IEC 60502-1 2010:NTP-IEC 60811-1-1: |
| Normal Voltage: | Uo / U (Um) = 0.6/1 (1.2) kV |
| Dielectric strength: | Approximately 3.5 kV; |
| Dielectric strength time: | 5 minutes |
| Max. operating temperature of the conductor : | 80°C |
| Emergency overload maximum: | 100°C |
| Maximum conductor temperature in short circuit: | 160°C |
| Min Bending Radius Current Carrying: | Acc. to DIN VDE 0298 part 3 |
| Galvanized steel flexible cable: | 3/16″ diameter |
| Minimum breaking load: | 1,300 kg·ft |
CABLE AUTOSOPORTADO PARA ELEVADORES 3×8+3×16 AWG International Standard
| Construction: | DIN VDE 0250-813 |
| General Requirements: | DIN VDE 0250-1 |
| Guide Use: | DIN VDE 0298-3 |
| Electrical Tests: | DIN VDE 0472-501, 503, 508 |
| Non-Electrical Tests: | DIN VDE 0472-401. 402,602,303, 615 |
| Under Fire Condition Tests: | DIN VDE 0472-803, 804 |
| Flame Retardant: | VDE 0482-332-1-2,DIN EN 60332-1-2,IEC 60332-1 |
| Oil Resistant: | HD/EN/IEC 60811-2-1.,DIN VDE0473-811-2-1 |
| Water resistance: | EN 50525-2-21 (HD 22.16) |
| Weather resistance: | Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture |
Cable information 0.6/1 (1.2) kV Self-supporting cable for elevators, 3×8+3×16 AWG
| Product code | Number of cores x cross section AWG | Number of Conductor Wires | Insulation thickness
(mm) |
Outer diameter | Weight (ca.) | Length/drum | Drum Qty | Gross Weight/Drum Package | ||
| 8 AWG | 16AWG | 8 AWG | 16 AWG | mm | kg/km | M/Drum | NO. | Kg/Drum | ||

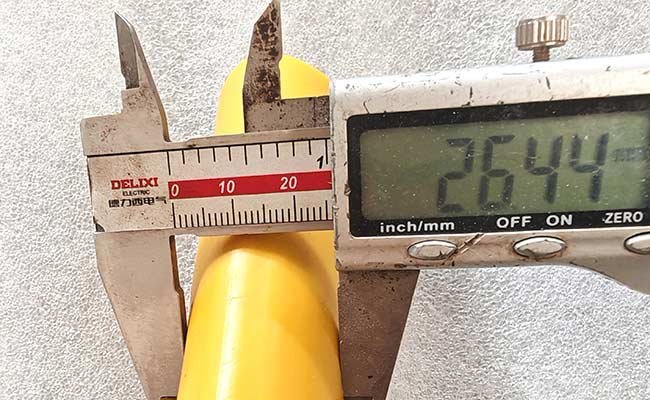

| TEBAOFLEX0213 | 3×8+3×16 | 168 | 26 | 1.0 | 0.8 | 25 x 34 | 1220 | 1000 | 1 | 1325 |
