300/500V H05VVH6-F, 450/750V H07VVH6-F Flat Elevator Flatform Cable

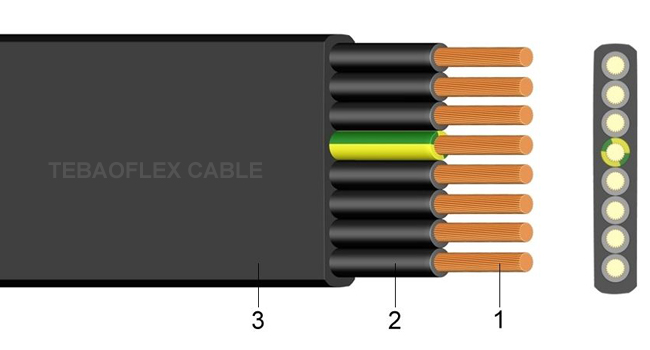

1 ….. fine-stranded bare copper
2 ….. core insulation of polyvinylchloride (PVC), cores are laid up parallel
3 ….. outer sheath of soft polyvinylchloride (PVC), black
Color: >6 wires black with white numerals with green/yellow wire
Application:
The cables are used for applications with medium mechanical stresses and sharp bending in one place. They are suitable for use in dry, damp and wet rooms as power and control cable, especially on hoisting equipment, handling systems, machine tools, etc.

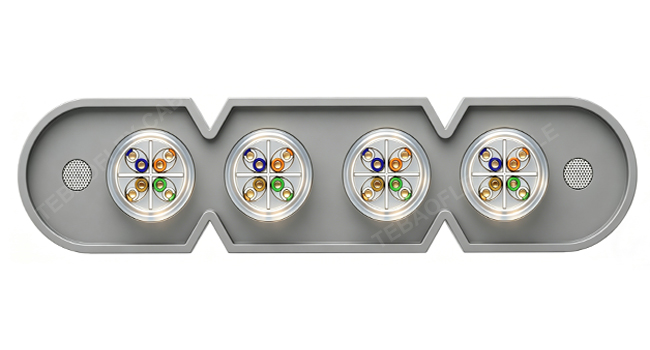

TVVBG CCTV Traveling Elevator UTP/STP Cable with Cat6/Cat5e Core+Steel wire
Conductor: Oxygen-free soft copper wire
Insulation: HDPE/Blue, Blue-white, orange, orange-white, green
Twisted: 4 Pairs
Inner Sheath: Flex PVC, Grey with black number 1-4.
Outer Sheath: Elastomer elevator sheath material (-15°C~70°C)
Color Identification: Grey.
Application: The cable designed for modern vertical transportation systems that require high-bandwidth data transmission, such as IP cameras, multimedia displays, and Wi-Fi access points in cabin.It supports Gigabit Ethernet speeds and, due to its structure, is often used in moving environments with high repeated bending.

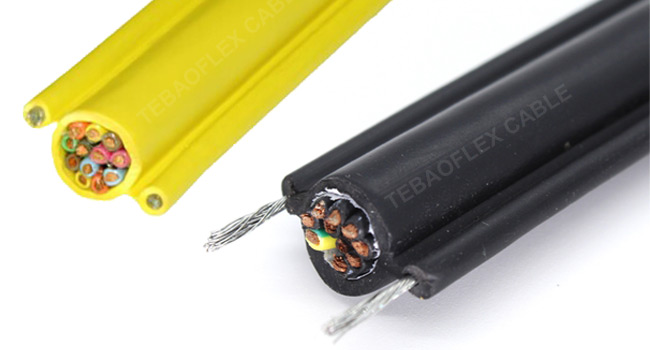

S05VVD7-F Self-Support Pendant Hoist & Lift Control Cable (with Strain Relief Core)
Voltage: 300/500V
Conductor: Class 6 flexible plain copper
Insulation: XLPE
Lay up: Cores laid up in concentric layers
Suspension Support: Two side steel cables covered with PVC, forming a single unit with the rest of the electrical conductors.
Outer Sheath: PVC
Color Identification: Black cores with white numbers
Application: Applications in lifts and hoists. The two steel load bearing elements can be detached without damaging the outer sheath and fixed independently from the cable gland. Two steel cores run parallel to the outer sheath. Offers high flexibility at lower temperatures. These cables are not suitable for drum reeling installations.

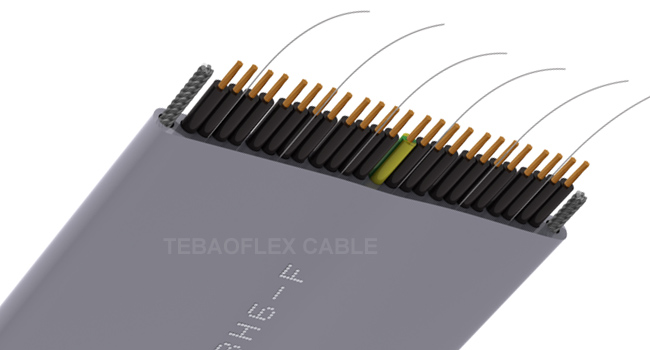

300/500V H05V3V3H6-F/ H05V3V3D3H6-F(Steel Core) Elevator Traveling Cable
Conductor: Bare copper strand conductor
Insulation: PVC T15 core insulation
Color: >6 wires black with white numerals with green/yellow wire
Sheath: Black PVC TM 4 sheath
H05V3V3H6-F type cable having no strechter carrier elements are adviced to use in elevator instalations max. swift not pass 4.0 m/s. These cables freely hanging height is max. 45m and movement limit is max 80m.
H05V3V3D3H6-F Cable at the swifts between 4.0/s to 6.3m/s, it’s adviced to use the cables having strechter carrier elements. H05V3V3D3H6-F type cables freely hanging height is max. 80m movement limit is max. 150m.

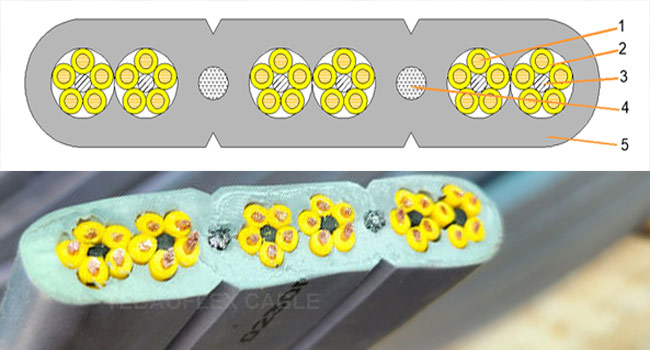

300/600V EVVF-H/EVVF-L Traveling Cable for Elevator (or with reinforcing wire)
1 ….. Tinned annealed stranded copper
2 ….. core insulation of polyvinylchloride (PVC), cores are laid up parallel
3 ….. filler
4 ….. Reinforcing Wire Rope (EVVF-H Type)
5 ….. outer sheath of soft polyvinylchloride (PVC)
Color/Construction: * Conductor: Tinned annealed stranded copper / * Insulator: Yellow , Black color (Numbering) / * Product: Light gray
E: Elevator, V: Viynl, F: FLat, L: Low-Speed, H: High-Speed
Application: This cable is generally used for connecting mobile elevator apparatus (control, signal).

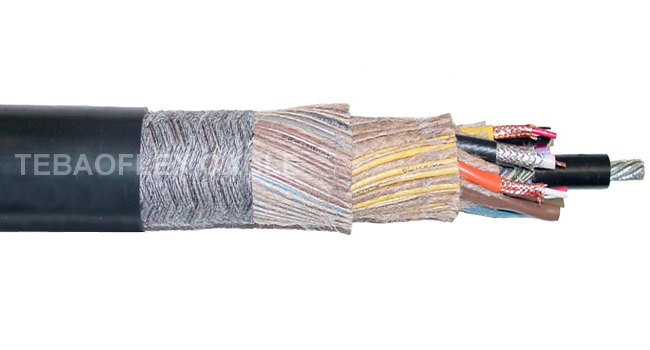

300V ETT Traveling Cable Round with Steel Core or Ethernet Media(Fiber Optic)
Voltage: 300V
Conductor: flexible copper wire
Insulation: Flame retardant Polyvinyl Chloride 60°C
Filler: Contra-Helically Cabled Layers with Jute Fillers.
Outer Sheath: Flame retardant Polyvinyl Chloride 60°C
Optional: 20AWG Shielded Pairs and Coaxial Components
Feature: Steel Core & Overall Synthetic Braid
Optional Fiber Optic
Application: For use in Elevator Hoistways in accordance with Article 620 of the NFPA 70 ”National Electrical Code”

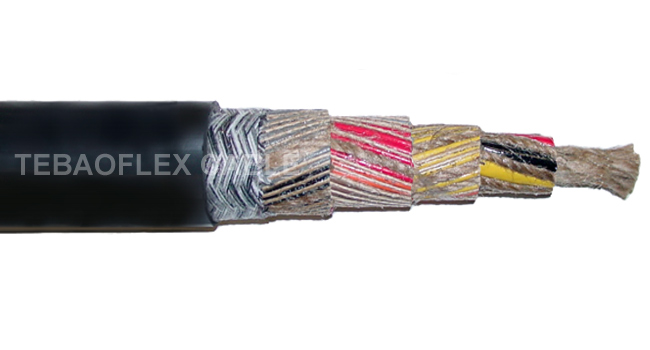

300V Traveling Cable Round Jute Core (Power/Signal/Shielded Pairs)
Voltage: 300V
Conductor: flexible copper wire
Insulation: Flame retardant Polyvinyl Chloride 60°C
Filler: Contra-Helically Cabled Layers with Jute Fillers.
Outer Sheath: Flame retardant Polyvinyl Chloride 60°C
Optional: 20AWG Shielded Pairs
Feature: Jute Core & Overall Synthetic Braid
Optional Fiber Optic
Application: For use in Elevator Hoistways in accordance with Article 620 of the NFPA 70 ”National Electrical Code”

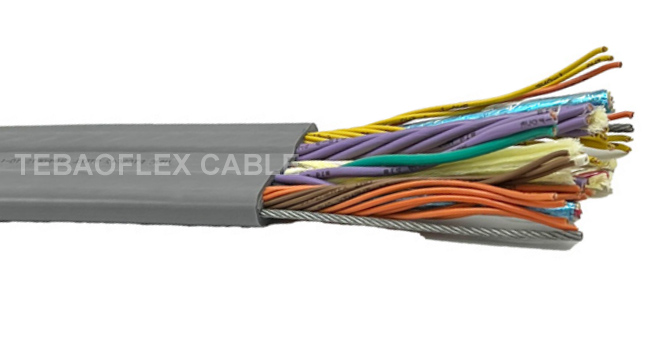

ETP Traveling Cable Flat – (Power/Signal/Shielded Pairs/Coax)
Voltage: 300V
Conductor: flexible copper wire
Insulation: Flame retardant Polyvinyl Chloride 60°C
Suspension Support: Two side steel wire cores
Outer Sheath: Flame retardant Polyvinyl Chloride 60°C
Optional: 20AWG Shielded Pairs
Feature: Power/Signal/Mdeia Conductors
Optional Fiber Optic
Application: For use in Elevator Hoistways in accordance with Article 620 of the NFPA 70 ”National Electrical Code”

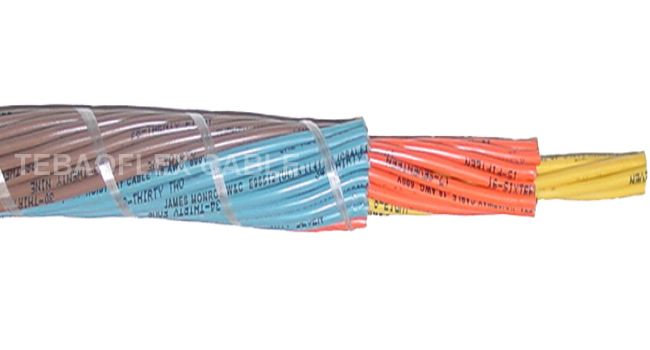

600V Unjacketed Hoistway Cable – (Power/Signal/Shielded Pairs&Coax)
Voltage: 600V
Conductor: flexible copper wire
Insulation: Flame retardant Polyvinyl Chloride 60°C
Size: 14~18AWG
Cores: 4~61Cores
Optional: 20AWG Shielded Pairs and Coaxial Cables
Color: Color coded and numbered
Application: For use in Elevator Hoistways in accordance with Article 620 of the NFPA 70 ”National Electrical Code”
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL CONDUCTOR DIAMETER | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
| # X MM2 | MM | MM | MM | KG/KM | KG/KM | |
| 16(30/30) | 4 x1.5 | 1.5 | 0.8 | 5.1 x 14.8 | 130 | 58 |
| 16(30/30) | 5 x1.5 | 1.5 | 0.8 | 5.1 x 17.7 | 158 | 72 |
| 16(30/30) | 7 x1.5 | 1.5 | 0.8 | 5.1 x 25.2 | 223 | 101 |
| 16(30/30) | 8 x1.5 | 1.5 | 0.8 | 5.1 x 27.3 | 245 | 115 |
| 16(30/30) | 10 x1.5 | 1.5 | 0.8 | 5.1 x 33.9 | 304 | 144 |
| 16(30/30) | 12 x1.5 | 1.5 | 0.8 | 5.1 x 40.5 | 365 | 173 |
| 16(30/30) | 18 x1.5 | 1.5 | 0.8 | 6.1 x 61.4 | 628 | 259 |
| 16(30/30) | 24 x1.5 | 1.5 | 0.8 | 5.1 x 83.0 | 820 | 346 |
| 14(50/30) | 4 x2.5 | 1.9 | 0.8 | 5.8 x 18.1 | 192 | 96 |
| 14(50/30) | 5 x2.5 | 1.9 | 0.8 | 5.8 x 21.6 | 248 | 120 |
| 14(50/30) | 7 x2.5 | 1.9 | 0.8 | 5.8 x 31.7 | 336 | 168 |
| 14(50/30) | 8 x2.5 | 1.9 | 0.8 | 5.8 x 33.7 | 368 | 192 |
| 14(50/30) | 10 x2.5 | 1.9 | 0.8 | 5.8 x 42.6 | 515 | 240 |
| 14(50/30) | 12 x2.5 | 1.9 | 0.8 | 5.8 x 49.5 | 545 | 288 |
| 14(50/30) | 24 x2.5 | 1.9 | 0.8 | 5.8 x 102.0 | 1220 | 480 |
| 12(56/28) | 4 x4 | 2.5 | 0.8 | 6.7 x 20.1 | 154 | 271 |
| 12(56/28) | 5 x4 | 2.5 | 0.8 | 6.9 x 26.0 | 192 | 280 |
| 12(56/28) | 7 x4 | 2.5 | 0.8 | 6.7 x 35.5 | 269 | 475 |
| 10(84/28) | 4 x6 | 3 | 0.8 | 7.2 x 22.4 | 230 | 359 |
| 10(84/28) | 5 x6 | 3 | 0.8 | 7.4 x 31.0 | 288 | 530 |
| 10(84/28) | 7 x6 | 3 | 0.8 | 7.4 x 43.0 | 403 | 750 |
| 8(80/26) | 4 x10 | 4 | 1 | 9.2 x 28.7 | 384 | 707 |
| 8(80/26) | 5 x10 | 4 | 1 | 11.0 x 37.5 | 480 | 1120 |
| 6(128/26) | 4 x16 | 5.6 | 1 | 11.1 x 35.1 | 614 | 838 |
| 6(128/26) | 5 x16 | 5.6 | 1 | 11.2 x 43.5 | 768 | 1180 |
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL CONDUCTOR DIAMETER | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
| # X MM2 | MM | MM | MM | KG/KM | KG/KM | |
| 18(24/32) | 4 x 0.75 | 1.2 | 0.6 | 4.2 x 12.6 | 29 | 90 |
| 18(24/32) | 8x 0.75 | 1.2 | 0.6 | 4.2 x 23.2 | 58 | 175 |
| 18(24/32) | 12x 0.75 | 1.2 | 0.6 | 4.2 x 33.8 | 86 | 260 |
| 18(24/32) | 18x 0.75 | 1.2 | 0.6 | 4.2 x 50.2 | 130 | 380 |
| 18(24/32) | 24x 0.75 | 1.2 | 0.6 | 4.2 x 65.6 | 172 | 490 |
| 17(32/32) | 4 x 1.00 | 1.4 | 0.7 | 4.4 x 13.4 | 38 | 105 |
| 17(32/32) | 5×1.00 | 1.4 | 0.7 | 4.4 x 15.5 | 48 | 120 |
| 17(32/32) | 8 x 1.00 | 1.4 | 0.7 | 4.4 x 24.8 | 77 | 205 |
| 17(32/32) | 12x 1.00 | 1.4 | 0.7 | 4.4 x 36.2 | 115 | 300 |
| 17(32/32) | 18x 1.00 | 1.4 | 0.7 | 4.4 x 53.8 | 208 | 450 |
| 17(32/32) | 24x 1.00 | 1.4 | 0.7 | 4.4 x 70.4 | 230 | 590 |
| NO. OF CORES X CROSS SECTION | NOMINAL OVERALL DIAMETER | CABLE WEIGHT |
| Number x MM2 | MM | KG/KM |
| 24×1.0 | 17.1 | 417 |
| 5×1.0 | 9.3 | 133 |
| 7×1.0 | 10.4 | 174 |
| 9×1.0 | 11.9 | 266 |
| 12×1.0 | 14.8 | 375 |
| 18×1.0 | 17.4 | 460 |
| 24×1.0 | 17.6 | 536 |
| 30×1.0 | 20.6 | 471 |
